WR225G

Product Description

Product Description
As one of the best wireless network companies, Shenzhen Ceres focuses on the development of wireless network products. They have more than 10 years of professional development experience and provide professional services such as Qualcomm, Intel, MTK, Realtek, and other mainstream solutions. If you want to choose network service, you have to find out the best wireless network provider.

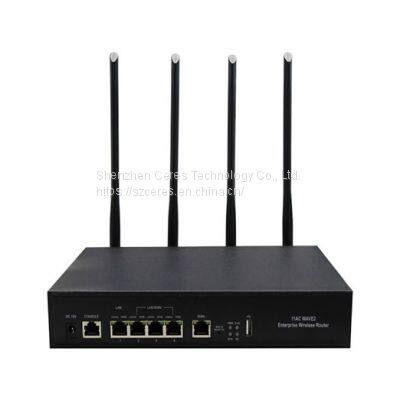

Dual-band Gigabit Enterprise WiFi Router WR225G
WR225G business & enterprise wifi router is a new generation enterprise high-performance wireless mesh router launched by Shenzhen Ceres Technology Co., Ltd. (hereinafter referred to as Ceres). This indoor dual band wireless access point is positioned in the SMB market of Ethernet/fiber/xDSL access, mainly including small and micro enterprises, corporate branch and families network environment of high-speed Internet access with high-quality dual-band wireless access point.
WR225G business wifi access point adopts Qualcomm enterprise chips and devices, provides 1*1000M WAN port and 4*1000M LAN ports, support 2.4G and 5.8G, max wireless rate is up to 1.3Gbps. The mesh system router and mesh network wireless routers support rich software functions, as a new generation of high-end flagship products, WR225G provides an ideal cost-effective product for small and micro-enterprise, corporate branch and families.
Hardware Specification

Characteristic	WR225G
Dimensions	266X162X44mm
Interface	1*10/100/1000 Base-Tx Ethernet WAN port 4*10/100/1000 Base-Tx Ethernet WAN port 1*console port 1*USB port 1*DC12V power port 1*Reset port
Rate	1.3Gbps
Antenna	External 4*5dBi high gain omnidirectional antennas
Wireless Transmit Power	2.4GHz: ² 11b 11Mbps：24dBm； ² 11g 6Mbps ：24dBm； ² 11g 54Mbps：22dBm； ² 11n MCS7-HT20：22dBm； ² 11n MCS7-HT40：22dBm； 5GHz: ² 11a 6Mbps ：24dBm； ² 11a 54Mbps ：22dBm； ² 11n MCS7-HT20：22dBm； ² 11n MCS7-HT40：21dBm； ² 11ac MCS8-VHT20 ：21dBm； ² 11ac MCS9-VHT40 ：20dBm； 11ac MCS9-VHT80 ：20dBm；
Receiver Sensitivity	2.4GHz: ² 11b 1Mbps：-96 dBm； ² 11b 11Mbps：-90 dBm； ² 11g 6Mbps：-91 dBm； ² 11g 54Mbps：-75 dBm； ² 11n MCS7-HT20：-70 dBm； ² 11n MCS7-HT40：-67 dBm； 5GHz: ² 11a 6Mbps：-91 dBm； ² 11a 54Mbps ：-75 dBm； ² 11n MCS7-HT20：-70 dBm； ² 11n MCS7-HT40：-67 dBm； ² 11ac MCS8-VHT20：-65 dBm； ² 11ac MCS9-VHT40：-60 dBm； ² 11ac MCS9-VHT80：-58 dBm
CPU	Qualcomm
Memory	256MB RAM
Flash	32MB
Power supply	DC input, 12V1.5A
Operating Temperature	-10～50℃
Storage Temperature	-40～85℃
Operating Humidity	5～95％(non condensation)
Consumption	＜13W
Certification	CE,ROHS

Software Specification

Characteristic	WR225G
Network protocol	PPPoE DHCP client DHCP server
Internet mode	PPPoE Static IP DHCP
Wireless	2.4G，5G Support national channel selection Signal strength selection WI-FI timing function
System service	ALG (IPsec, L2TP, FTP) Port Mapping DMZ host Remote WEB Telnet server DDNS
Security	IP filter MAC filter URL filter Port filter
QoS	Network speed statistics for connected devices MAC-based network traffic rate limit
Time synchronization	Time-zone selection NTP client Can add candidate NTP server
Management	Setup Wizard for quick and easy configuration Management password modification Route restart, restore factory Firmware upgrade (retain the original configuration)
System log	System log

Ordering Information

Product Model	Product Description
WR225G	1*10/100/1000Base-Tx Ethernet WAN port, 4*10/100/1000Base-Tx Ethernet LAN port, 1*console port, 1*USB port, external 4*5dBi antenna, support 2.4G/5G dual-frequency, support 802.11a/b/g/n/ac wave2 protocol, max wireless rate 1.3Gbps,Qualcomm chip, 12VDC power supply

---
