DP-1300 slitter rewinder for roll plastic films

Product Description

Product Description

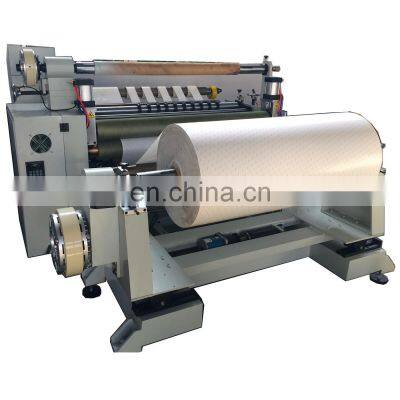

DP-1300/1600 slitter rewinder for roll plastic films
1.
Funcional characteristics:
This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials.
Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling,
with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.
It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
2.
Purpose:
It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,
copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
3. specification :

Model	1300 multifunction laminating and slitting machine	1600 multifunction laminating and slitting machine	650 multifunction slitting laminating machine
Max Feeding Width ( mm )	1300	1600	650
Main Engineer Power ( KW )	6	6	2.2
Speed (T/M )	80	80	80
Size ( mm )	2400*2000*1300	2400*2300*1300	2400*1700*1300
Weight (kg)	1200	1500	1000
Feeding diameter ( mm )	600	800	600
Rewinding diameter ( mm )	450	450	450
precision ( mm )	±0.10	±0.10	±0.10
Power	380V 50HZ	380V 50HZ	220V 50Hz

application sample picture :

---
