Large Capacity 4kg Cosmetics Pharmacy Chemical Material Vacuum Deaeration Mixer

Product Description

Types: SBT-VTP2000S is a vacuum deaeration mixer is a planetary centrifugal mixer, mainly applied in mixing fluid or powder material and reach deaeration effect.
Introduction 1.Rotation/Revolution while working with high power vacuum pump,equipment can stir the material evenly in few seconds or few minutes,stir and vacuum complete at the same time. 2.Mixing capacity varies from a few grams up to 2000 grams by using different containers, meet the requirement from laboratory use to volume production. 3.Up to 5 preset programs(Can be customized), every program can be divided to 5 segment, each segment with different mixing time and speed, able to deal with different types of the materials. 4.Max rotation speed is 2000rpm, high viscosity material can be mixed evenly . 5.The equipment is suitable for customer who have high volume demand. Single cup can mix up to 2000g, double cup can mix up to 4000g. 6.The key parts are all from industrial famous brands from home and abroad, to guarantee the stability of equipment under long time and high load operation.

Tips:
No further notice if there is appearance and specification change.
The product is non-explosive proof ,do not stir danger or hazardous material
Application Area:
LED Sealing&Package
Adhesive
Silicone Rubber
Cathode&Anode Material for Li-ion Batteries
Polymer Material
Silver Paste
Epoxy Resin
Pharmaceutical
Ink
Conductive Paste
LCD
Laboratory
Characteristic:
1.Max mixing capacity 2000g each cup.
2.The equipment stir the material under vacuum status through high-speed revolution/rotation (max 2000RPM) to achieve deaeration effect.
3.The equipment is non-contact stirring. 4.High viscosity resin can be stirred and achieve ideal deaeration effect in short time ,and material no overflow.
5.High stability performance.
Mixing effect:
Applied Mixing Samples for various kinds of chemical material cases:
Technical Parameter:

Model	SBT-VTP2000S
Product Name	Centrifugal stirring defoaming machine
Memory	Able to store 5 group program
Mix program	Each program can set 5 segment w different speed,vacuum level,rotation/revolution ratio
Revolution Speed	100-2000rpm
Rotation Speed	Invariablenes
Power Supply(voltage)	Single phase 220v,50hz/60hz
Power Consumption	0.5-1.5KW.
Container Capacity	2000ml*2 cups
Optimal Capacity of Mixing	0.5-1.5L* 2 cups
Operation type	Human-machine interaction mode
Vacuum	-98Kpa
Working Ambient Temperature	10-35ºC,35-85%RH(No condensation)
Dimension	L670xW800xH780mm
Weight	200KGS
Safety Device	Lock Sensor,Vibration Sensor,Emergency Button

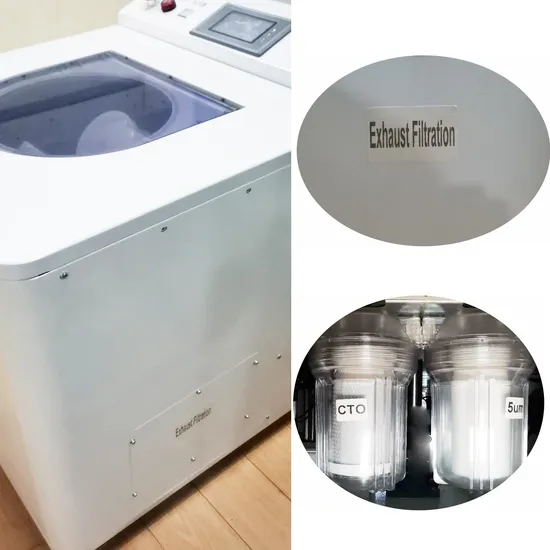

Adaptor(Optional) Photo is only showed applied example, customer requirement can be negotiated.

Exporting & Packing Information:
1)Dimension w Non-wooden case Packing: H1200*W770*D900MM
2)G/N W: 200/240KGS
After sale service:
1)Machine warranty period: 12 month, factory would supply spare parts on free in warranty time.
2)Password management
Provide the customer with a set of access codes for editing the defoaming program page at the factory to prevent the operator from rewriting the program at will, it might cause the material to be unsatisfactory.Please take care of the safekeeping.
3) Technical supporting in lift time. Any problems happened, factory would response in 8hours via Email, instant message or phone directly.

---
