Manufacturer Supply Seamless Hardened Boom Twin Wall Pump Pipe

US$1.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
4.85mm (3.25m + 1.6mm)
Inner Layer Hardness
up to HRC67
Length Deviation
+/-1mm
Test Pressure
280bar
Weld Tensile Strength
480bar
Surface Coating
Baking Paint
Theoretical Weight (Lbs./Kg.)
135/61
Hardened Process
UHF Quenching (400kHz)
Length (in/mm)
157.48/4000
Safety
100% Pressure Test
Transport Package
Standard Export Package
Specification
DN125*4.85(3.2+1.65)
Trademark
XIMAI
Origin
China
HS Code
8413910000
Production Capacity
5000PCS/Day

Product Description

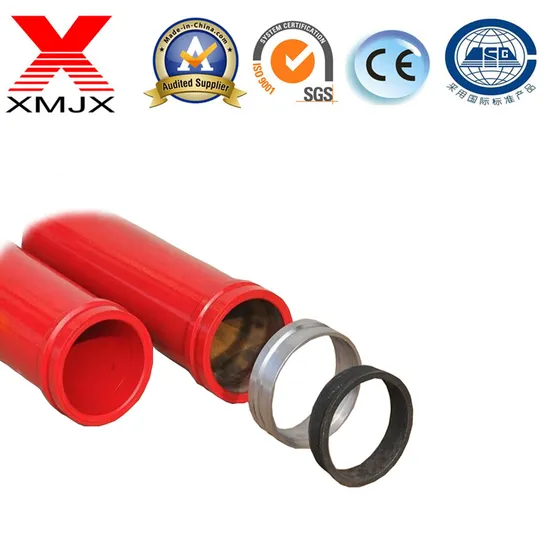

TWIN WALL BOOM PIPE DN125 4.85mm
TWIN WALL BOOM PIPE DN125 4.85mm (3.25m + 1.6mm) with 148mm chrome alloy liner weld ends
Part Number Length
(in/mm)
Theoretical weight
(lbs./kg.)
Hardened
Process
Hardness
HRC
Length
Deviation
Test
Pressure
Weld
Tensile
Strength
Surface
Coating
TW485W50L1M 39.37/1000 36/15 UHF Quenching
(400KHz)
UP to 68 ±1mm 170bar >480bar Baking paint
TW485W50L2M 78.75/2000 71/31 UHF Quenching
(400KHz)
UP to 68 ±1mm 170bar >480bar Baking paint
TW485W50L3M 118.12/3000 101/46 UHF Quenching
(400KHz)
UP to 68 ±1mm 170bar >480bar Baking paint
TW485W50L4M 157.48/4000 135/61 UHF Quenching
(400KHz)
UP to 68 ±1mm 170bar >480bar Baking paint
TW485W50L6M 236.22/6000 202/92 UHF Quenching
(400KHz)
UP to 68 ±1mm 170bar - Primer
Our service................ High Quality:
ISO9001, CE, CO certifications etc. All components adopt the qualified materials.
100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,
Ximai use the Bottom Price to make you become the most competitive seller in your region.
One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,
supplying related products so that can meet customers' needs.
Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.
We can have your urgent orders ready in short time.
Standard export package
Our package is in conformity with export requirements.
We ensure it's very safe and firm in the course of shipping.
Customer Service
Top sales with professional skills make you never feel difficult to communicate with a factory,
all Ximai staff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.
