High Capacity Large Wire Drawing Machine for Copper Wire with Annealer

Product Description

High Capacity Large Wire Drawing Machine for Copper Wire with Annealer Application
The production line is applicable for 2.6-3.5mm copper wire, drawn out to 1.0-2.76mm wire. Along with annealer, the finished conductor wire with annealing process can be used for next process stranding or extrusion.
Youtube Video Reference: https://hoohaco.en.made-in-china.com
General Parameters
Main Components

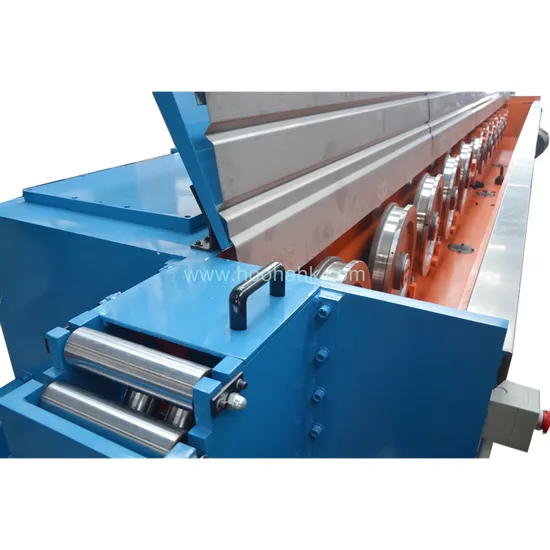

1. Drawing Machine

1	Inlet Dia.(mm)	3mm
2	Outlet Dia.(mm)	2.5~1mm
3	Mechanics Speed(m/min)	Max 1200
4	Capstan Dia.(mm)	350mm
5	No. of Dies(Channel)	9
6	Dies Outlet Size(mm)	25mm × 8 - 12mm (thickness)
7	Mechanics Elongation (%)	By the dies from the 1st to 8th, 25% by the 9th die, 16.7%
9	Main Motor Power(KW)	AC45
7	Constant Speed Capstan Motor (KW)	AC11
10	Drawing Coolant Mode	Full Immersion
11	Dimension(mm)L×W×H	4500×3000×3500
12	Machine Net Weight(kg)	About 4000

2. Annealing Machine

1	Wire Size range of Annealing(mm)	1~2.5
2	Annealing Mode	Contact mode DC annealing
3	Max. annealing DC current (A)	2500
4	Max. annealing DC voltage (V)	57
5	Steam consumption by annealing	10 - 12kg/h, 0.2 - 0.3MPa
6	Air consumption by annealing	20 - 30 m3/h, 0.4 - 0.6MPa
7	Annealing capacity	Max. 150 KVA
8	Dimension(mm) L×W×H	3500×1200×2000
9	Machine Net Weight(kg)	About 3800

3. Take-up Machine

1	Take-up control	Weight type tension bar
2	Take-up volume	500kg, max
3	Size of Take up	Φ630mm
4	Take Up Motor(kw)	AC 11
5	Transport Reel Motor(kw)	0.75
6	Dimension(mm) L×W×H	1800×2000×2500
7	Machine Net Weight(kg)	About 2000

Drawings
Packaging & Shipping
Streatchable PE film wrapped, wooden frame packed, loaded into container for shipping. Special packaging way as per discussed.
Our Advantages
Our Focus
1.Quality, our engineers work with service colleagues to learn more about customer feedback and improve our machines accordingly.
2.Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries
3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Give back to the community and help more people.
FAQ
Q1:What is your main brands for the electrical and mechanical parts?
A:Oversea famous brand such as German siemens motor, Japanese nsk bearing and yaskawa inverter etc.

Q2:What is your difference with other suppliers?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process
design , QC control, talent training, assist machine and raw material offering .
Q3:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery, can be negotiable also.
Q4:How long the guarantee ?
A: One year and charge for repair in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel : tiezhong chi.

---
