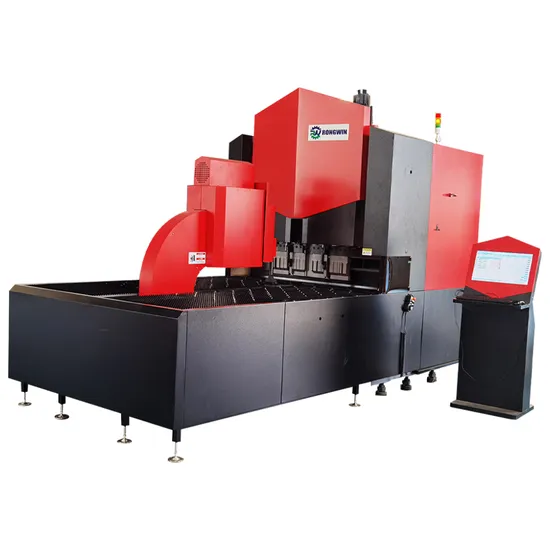

New 2500mm Sheet Metal Panel Bender Machine with Motor Pump PLC Gear Bearing Engine for Advertising Company Panel Bending and Bender

Product Description

Product Description
New 2500mm Sheet Metal panel Bender machine with Motor Pump Plc Gear Bearing Engine for Advertising Company Panel Bending and BenderRongwin panel bender adopts a full servo system. Unlike traditional bending machines, the bending machine mold needs to be pressed down against the fixed part of the bending machine, but the bending work is completed by the blade. During the bending process, the plate The material holder fixes the plate. The blade can bend up or down in different shapes. First, one side is bent outward, and then it is automatically bent inward. These different actions are controlled by the servo electric transmission device, which can ensure the highest positioning accuracy in the bending sequence and bring the best bending effect.
Standard configuration

No.	Component	Model	Brand
1	Operating environment	Win7 and above operating system	Windows
2	CNC system	Rongwin's new independent research and development of 15-axis concurrent linkage full-servo CNC system, seamless action, coherence, global leading work efficiency, independent design of lead-free soldering of hardware circuit boards, surface immersion gold processing technology, stable and durable	Rongwin
3	Motor	Servo motor	TaiwanSYNTEC
4	Screw	International top screw manufacturer	Taiwan HIWIN
5	Reducer	International top reducer manufacturer	Japan Shinpo
6	Frame	Steel plate welding, overall tempering	Rongwin
7	Mould	More wear-resistant, longer service life	Rongwin
8	Pneumatic accessories	Japan SMC	Taiwan AirTAC
9	Sucker	Imported oil-proof material, durable and replaceable	Rongwin
10	Coupling	Domestically produced	Shanghai
11	Oil system	Domestically produced	Nanjing

Product advantages
The bending center of the bending sheet metal bending does not require a mold and can bend various complex shapes. Can be folded right angle, Various combinations of complex shapes such as non-right angles, arcs, folds up and down, are used in the field of metal forming of different workpieces in different industries. The equipment is equipped with a pure electric servo system instead of a hydraulic drive, and has the advantages of environmental protection, fast speed, high precision, and maintenance-free.
Safety protection
1.Photoelectric protection: In order to prevent personal injury, a photoelectric protection device is installed, and the machine will automatically stop working when people touch the dangerous area when the machine is working.
2.The CNC system is equipped with an emergency power-off switch, which can power off the machine tool in a smooth manner.
Servo fiexible bending center body,it adopts high-strength steel plate for overall welding , with stable structure and long serving life Heat treatment removes internal strees, has strong rigidit and heavy tonnage ,ensures the long-term stability of machine tool ac-curacy , and improves the bending accuracy ,reliability and durability of machine tool.
High strength frame:
The frame adopts an open "C" structure, which is good for opening. The frame is made of steel structural parts, and after welding, the internal stress is removed by tempering the large tempering furnace. By finite element analysis, the frame has high strength and low deformationPress tooling:
realizes reliable compaction by servo-driven screw driving connecting rod, and can realize reliable clamping of plates of different materials and thickness.Positioning pushing device:
will place the plate to be folded in the X and Y directions, which can realize the pre-positioning between the plate and the machine tool. There are two groups of positioning blocks, which can locate the corner and the edge respectively. The combination has nine positioning functions, and the Y direction of the left and right positioning seat can be adjusted (+50mm) to adapt to the positioning function of various sheets.Rotating device:
Rotating device realizes the rotation of the rotating block by servo driving motor and reducer The high precision encoder realizes closed-loop control, and the rotation accuracy is stable and reliable.The servo drive motor:
The servo drive motor drives the precision ball screw to achieve stable and reliable feeding accuracy. The C frame is analyzed and optimized by finite element analysis, and the moderate lightweight achieves the balance between rigidity and high efficiency.Controller:
1.2D draw directly
2.Real time simulation display of bending process
3.Short responding time, the system will automatically active different processing data for different bending line
4.Support complicate bending angles, HEM and ARC, up and down bending without re-load.
5.Real time compensation
6.Hand Wheel mode as standard
7.3D drawing (.step) input. Smart Control system:
Rongwin's brand-new self- developed full-servo CNC system has seamless and coherent movements, leading the world in work efficiency, and independently designed hardware circuit boards with lead-free soldering and surface immersion gold processing technology, which is stable and durable. Abundant interfaces are reserved to support CNC, PLC, robot, etc. Provide partners with free lifetime system upgrade services.
The system reserves a wealth of Industry 4.0 interfaces, which can be connected to the robotic arm to realize automatic loading and unloading. With RONGWIN self-propelled manipulator, it has the same control system as the panel bender, and there is no need for secondary programming to replace the workpiece. The system automatically generates the motion of the robotic arm according to the bending instructions, which is more efficient and has better coordination.Machine structure
Our equipment is designed and produced according to the high precision machine standards,the main lathe bed adopts high grade castings,and the casting and weld assembly are all subjected to strict stress relieving process,also,they are producted integrated by ultra precision machine tool, finally, with the stictly control by our high precision detector, our machines can ensure the higher accuracy,higher stability and higher rigidity during there long-time running period.
Packaging & Shipping
Technical parameter

Items

RWAO2- 1000X

RWAO2- 1400X

RWAO2- 1000XC

RWA02- 1400XC

RWA05- 1400PC1/PC3

RWA05- 2000PC1/PC3

RWA05- 2500PC1/PC3

RWA05- 2000PS

RWA05- 2500PS

RWA05- 3200PS

RWA05 2000A

RWA05- 2500A

Axis QTY

9

9

11

11

15

15

15

18

18

18

21

21

Max.bending width of sheet metal

1000mm

1400mm

1000mm

1400mm

1400mm

2000mm

2500mm

2000mm

2500mm

3200mm

2000mm

2500mm

Max.bending height (after bending)

170mm

170mm

170mm

170mm

170mm 300mm(PC3)

170mm 300mm(PC3)

170mm 300mm(PC3)

170mm

170mm

170mm

170mm

170mm

Max.bending thickness of sheet metal

Material: st37 black materia

1.0mm

1.0mm

1.0mm

1.0mm

1.2mm

1.2mm

1.2mm

2.0mm

2.0mm

1.5mm

1.5mm

1.5mm

Material: A ISI 304 Stainless steel

1.2mm

1.2mm

1.2mm

1.2mm

1.5mm

1.5mm

1.5mm

3.0mm

3.0mm

2.0mm

2.0mm

2.0mm

Material:US T 265N/mm 2 aluminum

1.6mm

1.6mm

1.6mm

1.6mm

2.0mm

2.0mm

2.0mm

--

--

--

3.0mm

3.0mm

Min.panel thickness of sheet metal

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

Max.bending size of sheet metal

1000*1000 mm

1400*1400 mm

1000*1000 mm

1400*1400 mm

1400*1400 mm

2000*1500 mm

2500*1500 mm

2000*1500 mm

2500*1500 mm

3200*1500 mm

2000*1500 mm

2500*1500 mm

Feeding Method

Suction cup Used on smooth panel surface,no punching,no holes,which benefits suction cup to adsorb.

Pressing arm It is suitable for mesh,corrugated,hollow and various flat or special-shaped work pieces

Our company
Founded in 2017 years ,Nanjing RONGWIN Machinery Technology Co., Ltd is focus on press brake manufacturing and a professional one-stop smart custom metal solution service supplier . We are committed to building a strong Chinese metal working machinery and spare parts supply Chain System .
We have a dream "Let China's one-stop smart custom metal solution serve the world " and "We want to become a respected Chinese press brake manufacture,live 100 years " That's why we're always trying to keep our users satisfied .
We are specialized at metal working machinery and spar parts, like press brake, panel bender,fiber laser cutting machine, shearing machine, rolling machine, V grooving machine, hydraulic press, power press, ironworker, notching machine, tube cutting machine,tube bending machine ,HVAC Dust Machine, punching die, blades, kinds of toolings, etc. We can give customer all the aspect solutions for the metal industry fabrication machinery. We can guide customers for choosing their metal processing equipment so that customer can get the most cost-effective solution by our guide. Meanwhile we also can do O E M & O D M service. We have professional engineer support, high efficiency sales team and competitive price , we design our machine in a top class level which makes our machine in a good looking appearance , due to the good after sale service and reliable quality, we have sold to many foreign customers, they like our machines, they usually buy from us not only one time, now we already sold to more than 70 countries, including Europe, South America like Brazil, U S A, Canada, Russia, Vietnam, Pakistan, Australia ,New Zealand, Africa, Middle East country etc. After several years' development, We already applied some patent, and also got CE certificate and SGS for Press Brake, Laser Cutting machine,Panel Bender,V grooving machine etc, we will grow up together with our customer's support, we believe that our company will have a bright future.
Please trust ROGNWIN .We are always trying to make you satisfied .
FAQ
Q1: Can you give us a better price?
A: The more products you buy, the more discounts you get.
Q2: Can I make a OEM order?
A: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.
Q3: How does your factory do regarding quality control?
A: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.
Q4: What's your MOQ order?
A: Usually it's a minimum order. If you need more, we can negotiate a discount.
Q5: How to find the right product?
A: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate

---
