CNC Turning Center Machine with Dual-Spindle Automation

Product Description

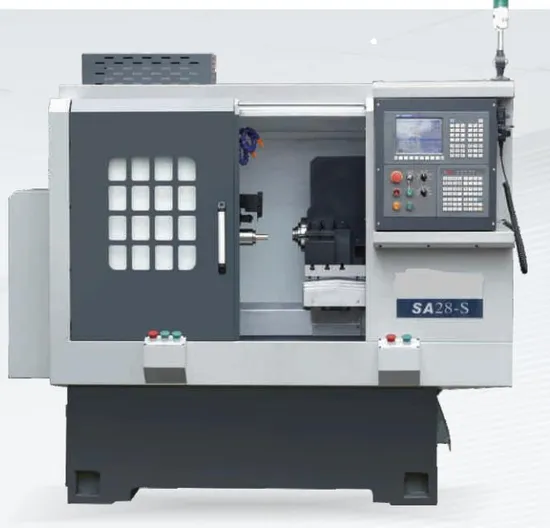

CNC turning center machine dual-spindle automation SA28-S Meet the new low cost option for dual-spindle machining. Advantages of dual-spindle/turret machining centers include:
One machine is cheaper than two
More accurate when a machining process is accomplished on a single machine, rather than moving the part from machine to machine.
Lower labor cost due to reduced set-up requirements.
In the past, the problem with dual-spindle machines has been the price-too high to justify.
Mingwen has now introduced the SA28-S Dual-spindle Turning Center. This high quality machine has the capabilities of traditional dual-spindle machines - at a much lower price tag. Finally, here is an automation option you can use - and price justify.
Specifications
Standard machining dia.: 40mm
Max. rod dia. 28mm
X axis travel: 350mm
Z axis travel: 200mm
Y axis travel: 80mm
X/Z rapid traverse: 15/15m/min
Spindle bore: 37mm/48mm
Spindle bar capacity: 28mm/40mm
Spindle speed: 3000rpm
Spindle chuck/collet: Hydraulic collet
Spindle turret type: Gang type tools, 8-station turret
Spindle motor power:3.7/5.5kW
Spindle type: 68mm
Spindle taper: 39°/42°
Dimension(L x W x H): 1990x1480x1830mm
Weight: 1900kgs

CNC turning center machine dual-spindle automation SA28-S
Meet the new low cost option for dual-spindle machining. Advantages of dual-spindle/turret machining centers include:
One machine is cheaper than two
More accurate when a machining process is accomplished on a single machine, rather than moving the part from machine to machine.
Lower labor cost due to reduced set-up requirements.
In the past, the problem with dual-spindle machines has been the price-too high to justify.
Mingwen has now introduced the SA28-S Dual-spindle Turning Center. This high quality machine has the capabilities of traditional dual-spindle machines - at a much lower price tag. Finally, here is an automation option you can use - and price justify.
Specifications
Standard machining dia.: 40mm
Max. rod dia. 28mm
X axis travel: 350mm
Z axis travel: 200mm
Y axis travel: 80mm
X/Z rapid traverse: 15/15m/min
Spindle bore: 37mm/48mm
Spindle bar capacity: 28mm/40mm
Spindle speed: 3000rpm
Spindle chuck/collet: Hydraulic collet
Spindle turret type: Gang type tools, 8-station turret
Spindle motor power:3.7/5.5kW
Spindle type: 68mm
Spindle taper: 39°/42°
Dimension(L x W x H): 1990x1480x1830mm
Weight: 1900kgs

---
