Melamine Wood Cutting CNC Sliding Table Saw Machine 3200mm Wood Saw Table Panel Saw Portable Panel Saw for Furniture Wood MDF

Product Description

Product Description
Advantages of the Wood Slding Panel Table Saw : 1: The double saw blade design provides stronger cutting power, with a maximum speed of up to 8000rpm/min, which can
effectivelyprevent the edge of the board from bursting.
2: Upgraded aluminum alloy baffle, 1.65m enlarged ruler with new aluminum alloy ruler baffle, more stable processing, ensuring cutting accuracy.
3: High-precision double-layer chrome-plated round bar pusher, strictly controls the pusher error within 0.2mm, ensuring the service life of the machine
4: Widened auxiliary table top, double auxiliary workbench, and cast iron material have all been widened and thickened to extend their service life.
5: Smooth tool change, automatically select the tool to use according to the product shape.
6: The fuselage is machined by one-piece cast gantry milling to ensure a smooth contact surface between the push table and the fuselage, avoiding vibration of the fuselage and affecting the cutting effect.

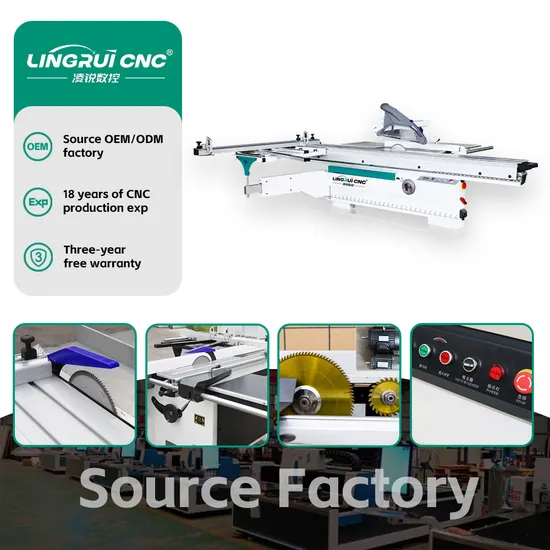

Detailed Photos
Product Parameters

Precision Panel Saw	LR-6128	LR-6130	LR-6132
Sliding table size	2800×320mm	3000×320mm	3200×320mm
Maximum cutting length	2800mm	3000mm	3200mm
Maximum cutting width	2800mm	2800mm	2800mm
Maximum cutting thickness	75mm	75mm	75mm
Spindle speed	3900/4900r/min	3900/4900r/min	3900/4900r/min
Spindle diameter	30mm	30mm	30mm
Saw blade angle	90°	90°	90°
main motor power	4kw/5.5kw	4kw/5.5kw	4kw/5.5kw
Scoring saw diameter	120mm	120mm	120mm
Saw speed	8000r/min	8000r/min	8000r/min
Countershaft diameter	20mm	20mm	20mm
Auxiliary motor power	0.75kw/1.1kw	0.75kw/1.1kw	0.75kw/1.1kw
Machine weight	700kg	710kg	720kg

The double saw blade design provides stronger cutting Main power supply and vacuum cleaner dual wiring port, the power, with a maximum speed of up to 8000rpm/min, vacuum cleaner can be connected to the machine to control
which can effectivelyprevent the edge of the board from the vacuum cleaner switch.
bursting.

Upgraded aluminum alloy baffle, 1.65m enlarged ruler The stable template system can effectively ensure with new aluminum alloy ruler baffle, more stable that the template does not shift during the cutting
processing, ensuring cutting accuracy. process.

High-precision double-layer chrome-plated round bar It adopts EU standard integrated control system, and pusher, strictly controls the pusher error within 0.2mm, the button switch adopts well-known brand, which is
ensuring the service life of the machine easy to operate and has a long service life.
The saw blade adjustment dial has a lift adjustment Widened auxiliary table top, double auxiliary dial on the left and an angle adjustment dial on the workbench, and cast iron material have all been
right. It is simple to operate and easy to use. widened and thickened to extendtheir service life.
Saw cut protection strip: A metal alloy protection strip The fuselage is machined by one-piece cast gantry is installed at the cutting edge of the saw table to milling to ensure a smooth contact surface between
prevent waste from getting stuck in the saw blade. the push table and the fuselage, avoiding vibration of
the fuselage and affecting the cutting effect.
Company Profile
We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Certifications
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7.Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.

---
