Vertical Screen Printing Equipment Manufacture

Product Description

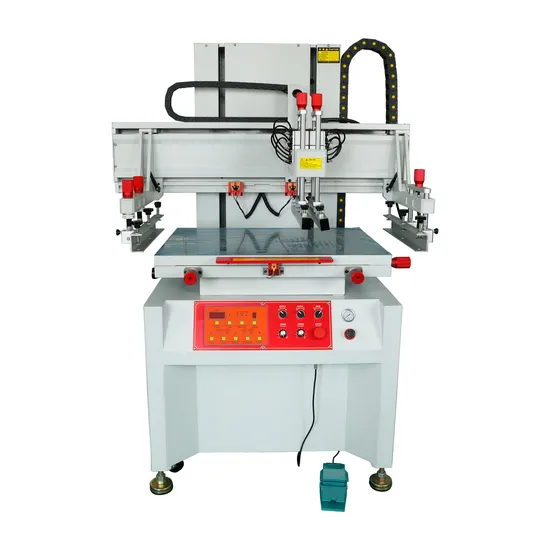

TM-3050D servo precision Vertical screen printer
Video link:
http://tamprinter.en.made-in-china.com
Technical parameter for references:

Model No.	TM-3050D
Servo+PLC	Single chip Control
Print area	300X500mm
Table size	400X600mm
Max frame	550X750mm
Printing thickness	0~ 40mm
Overlay accuracy	0.01mm
Platform precision	About±0.04mm
Printing pressure	4.0-8.0 kgf/cm2
Air pressure (mpa)	0.5~0.6(Mpa)
Air consumption	35L/min
Printing speed	960pcs/h
Power	220V/2.5KW
Dimensions (LXWXH)mm	980X820X1580mm
Weight	280kg

If add robot arm add $3000
Application:
Widely used in membrane switches, hot transfer printing, water transfer printing, PCB, LED, SMT, Solder paste printing, Plastic, glass, ceramics, metal, leather, keyboard, textile printing
Features:
(1). The screen printing machine is driven by motor drive, belt drive, sensitive, balanced speed, speed adjustable.
(2). Screen vertically, driven by a motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). The working process is divided into manual, semi-automatic and automatic.
(5). Vacuum adsorption fixed printing pieces.
(6). Printing plates has left and right, before and after fine-tune the device so that accurate and convenient to the board.
(7). Equipped with security guards, which makes the reliable security.
(8). Centralized control of microcomputer, reliable performance, low failure rate, the machine is easy to operate, flexible, and easy maintenance.
About company:
Tamprinter printing machinery group limited is one of the most professional plastic printing machine supplier in China. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Business scopes:
1. Research, develop, produce and sell: Screen printer, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure machine, Silk mesh tighten stretching machine, Screen stencil drying oven, Silk screen frame exposure machine, oven, IR drying tunnel conveyer ),Pad printer, Hot stamping machine;
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;
3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc;
5. Import and export business of the above items.
6. Our engineer can communicate with clients at anytime in English, design development use UG, Pore, Autocad, Mastercam,Photoshop,AI,Coreldraw;


Welcome to contact us if you have any questions!

---
