10L Single Glass Reactor

Product Description

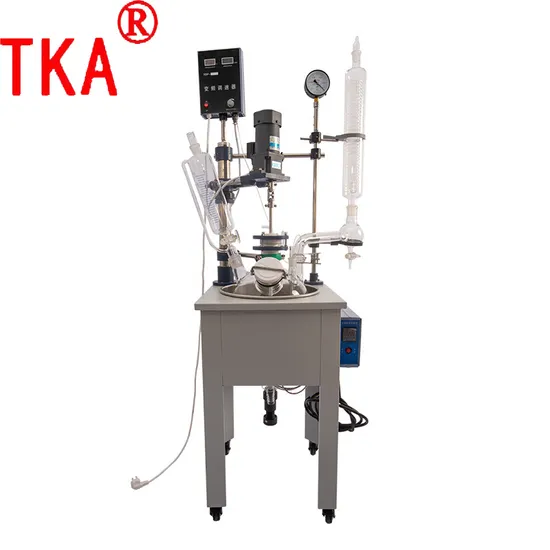

10L Single Glass Reactor
Product DescriptionFunction introduction:
TFD series double-layer glass reaction kettle (apparatus) is used for stirring and refluxing reaction and distillation reaction by placing reaction The single-layer glass reactor is a vacuum, distillation, reflux, stirring and constant temperature water or oil bath combination of experimental equipment, this multi-functional vacuum constant temperature single-layer glass reactor can be under constant temperature conditions for a variety of biochemical and synthetic reactions. The single-layer glass reactor is a fully enclosed system and can be used to draw in a variety of liquids or gases under negative pressure from a circulating water vacuum pump, or to reflux or distill at different temperatures. The cooling coils are equipped with a low temperature coolant circulation pump for low temperature operation.
Feature
1. distillation and reflux can be achieved simultaneously.
2. Special long-lasting stirring seal.
3. No cross contamination between the material and the GG17 glass and PTFE.
4. Digital display of speed and high and low temperature display, easy to operate.
5. Large cleaning port, easy to clean.
6. Large discharge valve for solids and liquids.
7. Intelligent type (oil, water bath reheat or electric heater).
Product Parameters

Model	TK-DF-10L
Dimensions(mm)	540*480*1800
Bath size(mm)	360*220
Outer package size(mm)	1100*520*600
Kettle volume(L)	10
Voltage / Frequency(V/Hz)	220/50
Reaction temperature(ºC)	Room temperature-299
Up to vacuum level( MPA)	-0.098
Mixing speed (rpm)	0-600
Mixing power(w)	120/Ex 180
Heating power(kw)	3.5
Seal form	Polytetrafluoroethylene
Stirring	Anchor stirring bars
Number of lid openings	Six ports (dosing port, reflux port, temperature measurement port, drip port, vacuum port, stirring port)
Kettle body	Spherical
Glass material	GG-17 High borosilicate glass
Discharge	Slant discharge type PTFE spool glass discharge valve
Drop-in	1000ml Constant pressure funnels
Control system	Intelligent digital display controller
Heating bath	Inner chamber 304 stainless steel
Frame	304 Stainless steel
Condenser	Vertical serpentine condensing coils
Other	Custom modifications available on request

Packaging & ShippingPackage Detail
1) Wooden packing2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.3) You can choose your own freight forwardwe as well.4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Shipping Details1) AMERICA:3-8 working days.2) ASIAN:3-8 working days.3) EUROPE:5-10 working days.4) OCEANIA:4-9 working days.5) AFRICA:7-13woring day.
Company Profilei'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on.
Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission.
Exhibition ShowCertifications
FAQ Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.Q6:What is your terms of payment?A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)Q7:Can we visit your factory?
A7: Welcome visit our factory.

---
