100-1000g Automatic Horizontal Pouch Packing Machine, Powder, Liquid, Granule

Product Description

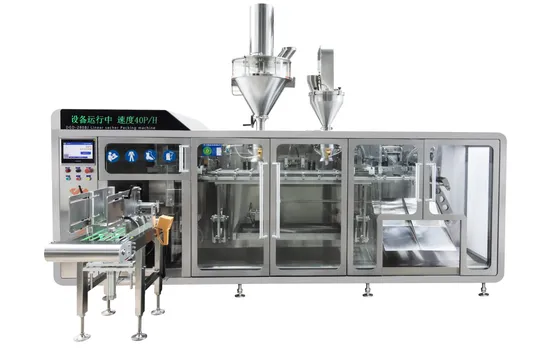

DGD-280BJ Automatic Horizontal Pouch Packing Machine Product Description
Introduction
DGD-280BJ Automatic Horizontal Pouch Packing Machine is our newly developed online weighing bagging machine. Under the programmable control of the PLC, the function of bag removal → bag opening → detection → filling → sealing → finished product is realized .
It adopts SUS304 arc-shaped frame and tempered glass door cover, with a complete dust removal system, which is suitable for packaging production of various prefabricated bag products. Product Parameters
Technical Parameters

1	Capacity	20(Weighing)-40Pouches/Min *Actual capacity: According to product size, packaging material, material characteristics, etc.
2	Applicable Pouches Size	W120-280mm L180-380mm
3	Volume	≤1000g *According to the physical properties of the raw materials and the different feeding devices.
4	Precision	±1g(100g);≤±2g(200-300g);≤±3g(300-500g) ≤±3g(500- 1000g)(Optional weighing mode) *According to the physical properties of the raw materials and the different feeding devices
5	Air pressure	0.6-0.8MPa 500L/MIN
6	Power supply	~380V 50Hz/6.0KW
7	External Dimension	3750×2380×1580mm(L×W×H) *Without powder filling device
8	Weight	About 3100Kg

Our Advantages
One key automatic material cleaning system.
Easy to maintain: with telescopic air gun, quick clearance.
There is a trapezoidal water tank at the bottom of the whole machine, and the water outlet is connected to the sewage pipe, which makes cleaning and drainage more convenient.
Effective dust isolation: overall closed frame, glass door cover + dust isolation cover (dust isolation is adopted from bag opening station to sealing station to control the dust in the filling area); At the same time, high-power dust collector can be selected to reduce the amount of dust.
Diving and blanking + bag dusting: for materials with large dust, a fully closed blanking mechanism can be selected. When sealing, a bag dusting mechanism is used to remove the dust at the bag mouth to ensure the sealing effect.
Mechanical bag opening: no bag opening, no filling, no heat sealing. The bag can be reused without wasting materials. Avoid large amount of dust without blanking
Mechanical bag opening: no bag opening, no filling, no heat sealing. The bag can be reused without wasting materials. Avoid large amount of dust without blanking.
Optional: the environmental protection cover on the top of the filling area is used together with the dust isolation plate in the equipment, which has better dust removal effect. European and American arc frame shape, high grade and strong visibility.
Temperature control integrated module: real-time monitoring of temperature changes, touch screen operation control, at a glance, to ensure the stability and reliability of equipment operation to the greatest extent.
Application Scenario
Company Profile
Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd (JWIM) established in May 2005. JWIM is a professional manufacturer engaged in agricultural and animal husbandry intelligent factory. We are a high-tech enterprise integrated with R&D, manufacturing, marketing and service.
JWIM products focus on the agriculture and animal husbandry industry, so far it has obtained more than 100 patent certificates, among them JWIM intellectual formulation workshop has 8 invention patents and 8 utility model patents. The products have been exported to more than 50 countries at home and abroad. We have provided professional services to more than 3, 000 agricultural and animal husbandry customers.
In order to adapt to the development of Industry 4.0 and Made in China 2025, the intellectual formulation workshop researched and developed by Jinwang is a safe, environmentally friendly, intelligent, integrated and efficient formulation workshop.
Our products include intelligent processing, intelligent packaging, intelligent storage, intelligent general control and intelligent factory. Our services include operation and maintenance services (Jinwang agrochemical Business School), remote services, contracted services, service station services, integrated workshop transformation services and EPCM services for intelligent factories.
We have an after-sales team of 200 service engineers, including 50 overseas after-sales service engineers, serving Vietnam, Indonesia, Thailand, Philippines and other countries all over the world. The global Internet service center can provide remote services to help customers solve problems online.
