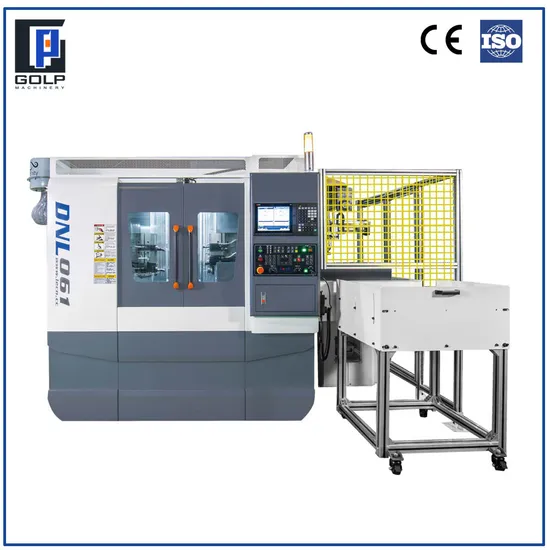

Automatic Line Double Head Spindles Turret CNC Turning Center Lathe for Shafts/ Railroad Communication Cores

Product Description

Full-function lathe, double head lathe and double spindle lathe devel-oped to better suit the production line due to the need to provide com-prehensive solutions.
Lathe machine + automated line
√ Vertical integral frame body, rigidity, easy chip;
√ Respond to different parts, only replace the collet and fixtures;
√ Fix one time,processing both end at one time, high efficiency ,good precision;
√ Special structure central spindle can respond to high speed and cutting rigid;
√ Independent row cutter with telescopic tool, effectivey slove the tool in terference;
√ Dual-channel controller, easily respond to synchronization processing;
√ Can carry with truss or joint robot and automatical line .
Application Case
Part name: High-speed railroad communication core
Machining process: turning both ends
Machining concentricity precision: 0.005mm
Machining surface roughness: 0.8
Machining both ends of the workpiece automatic line Lathe flat bed machining

Item	DNL061	DNL062
max body rotate diameter	Ф200 mm	Ф200 mm
clamping diameter scope	Ф15-Ф50 mm	Ф15-Ф50 mm
turning length scope	100-300 mm	300-480
spindle clamp diameter	Ф50 mm	Ф50 mm
X/Z travel	280/180 mm	280/180 mm
X/Z fast speed	18/24 m/min	18/24 m/min
fool type	cutter	cutter

Other DNL061 Automation for integrated solutions
Single automation For long shaft workpieces
Double-head lathe + oblique lathe Automation line
One-two automation line Suitable for mining drills
truss robot
Characteristics of truss robot
>High efficiency: its axes run in a straight line at a very high speed and can respond quickly with a servo motor.
>Stable: Minimal repeatability error, up to ± 0.05mm.
> High strength: It can work 24 hours a day.
> High precision: The positioning accuracy can reach : ±0.02mm (thepositioning accuracy can be appropriately enlarged according to theworking conditions).
>High cost performance: Compared with joint robot, its load weight islarge and its production cost is low.
>Simple operation: Based on the rectangular coordinate system, itsmotion parameters are relatively simple.
3D animated simulations.
WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear shaping machine, gear grinding machine ,gear chamfering machine ,gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q: What is the warranty period?
A: We offer a warranty service for all purchased products ranging from 12 to 24 months, ensuring you are worry-free during the use of our equipment. Choosing us means choosing a long-term and reliable partner.
Q: What is the delivery time?
A: For in-stock items, we guarantee delivery within 1-2 months; for custom-manufactured products, we commit to delivering within 5-6 months. No matter how urgent your needs are, we can respond quickly to ensure your project proceeds on schedule.
Q: Do you provide after-sales service?
A: Yes, we provide comprehensive after-sales services, including but not limited to timely supply of spare parts, online technical support, on-site installation and commissioning, as well as operational training. We strive to offer you the most thoughtful service support to ensure the efficient operation of equipment and assist in the continuous growth of your business.
Q: What additional products or services do you offer?
A: we also provide "turnkey" engineering services, customizing automated production lines according to customer needs to ensure seamless integration with existing production processes. We are committed to offering complete solutions to every customer, helping you achieve maximum production efficiency.

---
