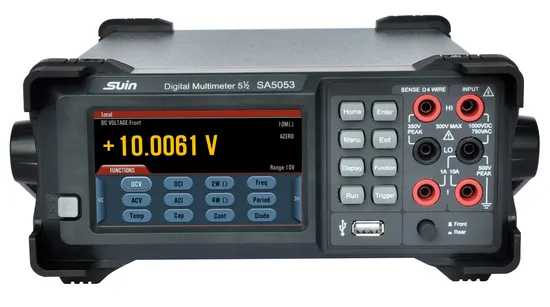

Suin SA5053 Digital Multimeter with Automatic Range Change Function

Product Description

Features
True 5 1/2 digits
1 μV resolution
Full measurement functions to meet user's test need
Double display voltage and frequency synchronously
4.3 inch LCD capacitive touch screen to display bar chart, histogram and trend chart
Product Overview
Specifications

Basic Function	Range	Best Accuracy ± (% reading + % range)
DC Voltage	100mV/1V/10V/100V/1000V	± (0.012 +0.005)
AC Voltage	100mV/1V/10V/100V/750V	± (0.2 + 0.1)
DC Current	100µA/1mA/10mA/100mA/1A/10A	± (0.05+0.007)
AC Current	100µA/1mA/10mA/100mA/1A/10A	± (0.5+0.1)
Resistance	100Ω/1KΩ/10KΩ/100KΩ/	± (0.03+0.005)
	1MΩ/10MΩ/100MΩ
Capacitance	1nF/ 10nF/ 100nF/1µF/10µF/100µF	± (0.2+0.5)
Frequency	5Hz-1MHz	± 0.02
Temperature	- 200ºC~ 800ºC	± 0.2ºC(without accuracy of probe)
Features
Reading Rate	500 reading/s
Auto Range	√
Diode	√
Continuity	√
Trigger	√
Save/Read	√
Math	MAX/MIN,Rel,dB, dBm,Limit,Statistic
General Characteristics
Safety	IEC61010-1: 2001, 1000V600V, Class of pollution: 2
Interface	USB Host, USB Device,RS-232,LAN, GBIP (optional)
Power	115 V/230 V (1±10%), 50 Hz/60 Hz, 15 VA
Dimension & Weight	256х106х322 mm, 3.5 kg

Warranty
For the technical and material's defects of the products that Shijiazhuang Suin Instruments'Co., Ltd produced and sold, we promise one year warranty since the shipment day. Duringb the warranty, to the defective products which is proved, we will regroup or replace this defective ones based on the detailed provisions of the warranty.
