CNC Woodworking Machine Five Axis Cutting and Engraving Automaticl Tool Changer Machine

Product Description

Five Axis CNC Machining Center
Machine Fearture of our cnc cutting machine

1) OSAI numerical control system, the machine is of high speed and high machining accuracy.

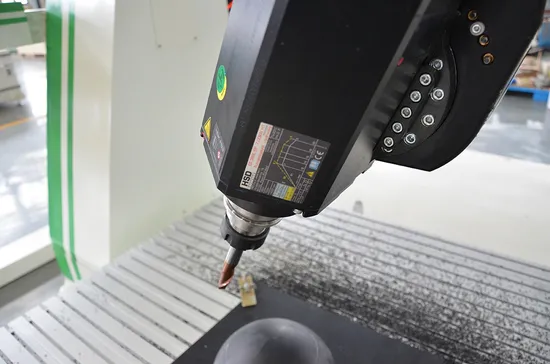

2) 10KW Italian HSD Spindle , with High precision and great strength for ATC machine.
3) Japan THK rails and Germany original rotating arm ensure the accuracy and strength of the
machine.
4) Z-axis travel can be heightened to 1.2meters, so it is very suitable for processing large-scale
three-dimensional surface.
5) The intelligent processing cross-border protection function can prevent the excessive process
caused by mechanical collision.
6) Diversified control processing speed can control the working speed, traveling speed and
dropping tool speed, and it improves the quality and efficiency greatly.

cnc cutting machine Sutiable Material & Industry
Wood, EPS, Gypsum, Industrial wax and many other nonmetal material.

1) Mold industry: Various large metalloid moulds, especially suitable for foam mold, wooden ship
mold, wooden aviation mold, wooden rail mold and wooden train mold.
2)Instrument industry: 3D surface engraving and shape cutting of large-scale instruments.
3)Other industries: Especially suitable for processing large-scale three-dimensional surface.

Technical data of our cnc cutting machine

1	Model Name		DLM-1224-5 axis CNC Router
2	Movement type		Movable table
3	Working area(MM):X*Y*Z		3100*1600*900MM
4	Travel ling	C Axis	±213°
		A Axis	±120°
5	Beam spacing(MM)		2750
6	Beam Height(MM)		1500
7	Double pendulum head type		HS652
8	Supplier for Double pendulum head		HSD
10	Output power of Spindle		10KW
11	Spindle speed		22000 R/M
12	Servo system		YASKAVA Servo system
13	Inverter		Delta inverter
16	Table size (MM)		1220*2440mm
17	Material of Table		Aluminum Profile
19	Tool magazine		Rotary tool magazine (8 positions)
20	Cutter specifications		HSK.F63.ER40
21	Control system		OSAI
24	Minimum training period for operator		2 weeks
25	Programming Software		AlphaCAM
26	Software version		V7
27	Machine size		4260*2150*3300MM
28	Total weight		12T
29	Total Power(kw)		30KW
30	Voltage		AC 3P 380V 50HZ
31	Efficiency File Conversion(hr/day)		0.5
32	File Exchange		USB
33	Equipment data storage and capacity		Cable transmission,USB,CF
34	Maximum speed:	X Axis	40m/min
		Y Axis	40m/min
		Z Axis	20m/min
		C Axis	2700°/min
		A Axis	2700°/min

---
