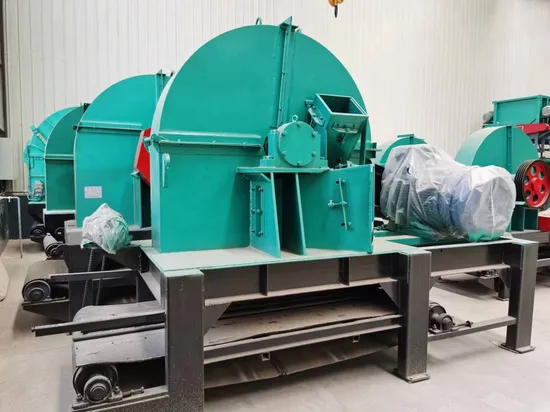

Disc Wood Chipper for Making Wood Chips

Product Description

The disc wood chipper machine is a kind of wood-cutting machine. It is used to produce good quality wood chips. The disc wood chipper suitable for paper mills, particle board factories, fiber board factories, etc.
The output from disc type wood chipper can be cut into uniform length, flat incision, and uniform thickness.
Parameter:

Model	HX1710	HX1300	HX1216	HX1800
Rotation speed(rpm)	635	650	620	420
Blade QTY(piece)	6	6	6	6
Chip size(mm)	20-35	20-35	20-35	20-35
Input size(mm)	270x270	350x350	420x420	500x500
capacity(TPH)	5-10	10-15	15-25	20-40
Main power(kw)	55/75	90	160	160
Feed + discharge motor (kw)	3+3	3+3	3+3	5.5+5.5
Disc diameter (mm)	1150	1300	1600	1800
Weight (t)	4.3	5.3	7.2	8.5
Feed conveyor width (mm)	350	350	470	550
Feed conveyor length (mm)	4000	4000	6000	6000
Discharge conveyor width (mm)	600	600	900	1300
Discharge conveyor length (mm)	10000	10000	10000	10000
Shipping	1x20'GP	1x20'GP	1x40'HQ	1x40'HQ

Note:most parameters can customized based on requirement,such as:feed in size,conveyor length,motor KW size,...
Working sites
Discharged wood chip/bamboo chip
Key parts: blade and blade disc rotor
Shipment
Control box
Certificate:
Producing ,workshop
Clients visiting

---
