1000W48V Maglev Wind Turbine and Solar Panel for Hybrid System

Product Description

Product Description
Vertical axis wind turbine
Lowest cut-in wind speed
1 m/s for power production
No noise, no vibrations
(sound level< 25 dB at 7 m/s from 10 m distance)
Adaptable for hybrid solutions
with solar and other sources of energy
Permanent power supply
from wind/solar and continuous battery charging
Technically advanced Maglev generator
No mechanical friction
Best price-performance ratio All weather resistant
(rain, ice, heat, salt, sand)
Independent of wind direction
Suitable for roof fixation
Maintenance-free
Safety for people and nature
1kw vertical wind generator
1. High efficiency, security, stablity
2. Low weight, low start-up wind speed.
3. Long service life
Vertical wind turbine generator(VAWTs)are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. They are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
Useage
· Household, Garden, farm eolic vertical wind turbine generator, Off grid and on grid power system
· Telecom sites.
· Rural electrification programs. Island, sentry, island, sight lighting

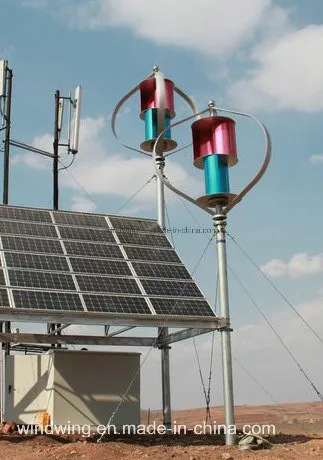

· Make wind -solar hybrid power system
Features
1. Utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure
2. The start-up wind speed is very low
3. The wind energy coefficient is very high
4. The anti-wind capability is high
5. The weight of generator is very light
6. Operation is stable
7. Have no noise
8. With careful anti-corrosion treatment and good sealing
9. Maintenace free
10. Long service life
Technical Data

PARAMETER	VERTICAL WIND TURBINE MODEL NUMBER
	WKV-1000
Rated Power	1KW
Size(Height / Diameter)	2.1/2(M)
Blades Material	aluminum alloy
Start-up Wind Speed	1m/s
Minimum Power Generation Wind Speed	2m/s
Cut-in wind speed	3m/s
Rated Wind Speed	13m/s
Cut out Wind Speed	15m/s
Survival Wind Speed	60m/s
Generator Type	AC, 3 phases
Controller Output Voltage	24V/48V
Controller Braking System	3-Phase short circuit by NFB brake
Ambient Temperature	.-30~50 °C

Power Curve
