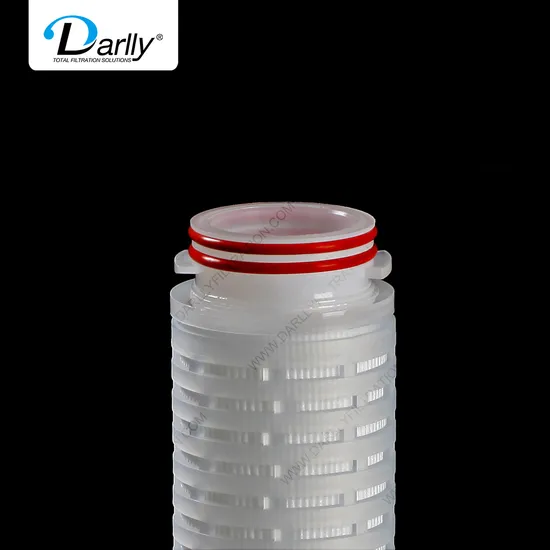

10/20/30/40 Inch High Quality Pes Pleated Filter Cartridge to Remove Bacteria From Wine and Beer

Product Description

PAA series polyethersulfone (PES) membrane filter is designed to provide greater bacteria and particle removal at high flow rates and low pressure drops in a wide range of biological fluids. It offers the greatest assurance of filtration performance, stability and service life. Specifications

Material of Constructions
Media	PES
Support	PP
Cage/Core/End	PP
Connection Adtptor	SS Insert, PSU Insert
O-Ring	Silicone, EPDM
Dimension
Diameter	69mm
Length	5", 10", 20", 30", 40"
Performance
Max. Operating Temperature	80ºC
Max. Operating DP	4 Bar@21ºC , 2.4 Bar@80ºC
Autoclave Sterilization	121ºC , 60 Min
SIP	125ºC , 30 Min
Bacterial Retention
0.22µm	LRV≥7 Pseudomonas diminuta
Filtration Area
Ø 69mm	0.58 m² / 10" Filter cartridges
Extractables
10" Filter Cartridges	< 20mg

Feature Application • Filter Cartridges are manufacturered in a clean room environment
• Manufacturered according to ISO9001:2015 certified Quality Management System
• 100% integrity test Food Contact Compliance • Materials used to produce filter media and hardware meets the specifications for biological safety per USP Calss VI-121C for plastics.
• Filter cartridges Meet European Commission Directives (EU10/2011)
• Halal Certified

---
