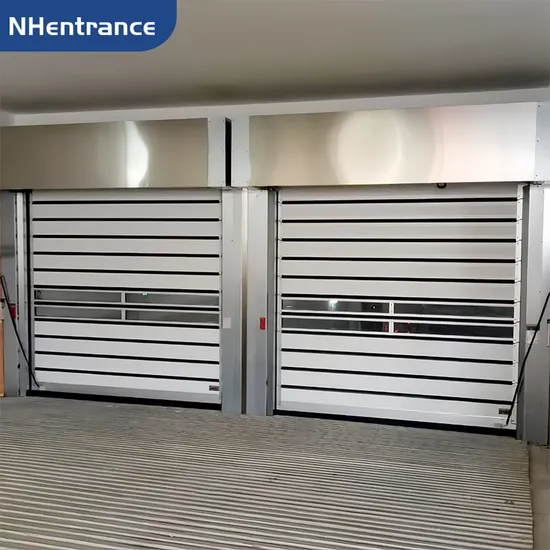

High Speed Rolling Spiral Door for Logistics with Insulated and Anti-Collision Features

Product Description

Product Description
Set fast, energy-saving, sealed, wind-resistant, environmentally friendly in one of the new metal industrial doors, has a high degree of reliability and practicality, its operating speed is more than 6 times that of the industrial sliding door, by virtue of the efficiency of the work, the high speed spiral door is gradually replacing the industrial sliding door.
The door plate is produced by a large-scale assembly line with French technology, filled with polyurethane industrial heat preservation material inside the door plate, and the bridge-breaking design can isolate the indoor and outdoor temperature loss, which can effectively save energy. The two ends are connected by hinges, and the door panels are connected by double side sealing strips, which ensures the sealing and also effectively fights against the strong convection wind pressure.
Turbo high speed spiral door can prevent the intrusion of outsiders and at the same time can withstand weather changes, can isolate the indoor and outdoor air convection, is used in frequent access, and is the ideal choice for industrial energy saving and reduced consumption.
Product Parameters

Speed	Up to 2.5m/s (98.43 inches/second) with servo drive. Maximum speed depends on door size.
Size	Minimum: 1000mm(3.28'DOW) x 1000mm(3.28'DOH) Maximum: 8000mm(26.25' DOW) X 9000mm(29.53'DOH)
Panel Material	0.7mm(0.028") thick is for aluminum plate foaming density is 45kg/m3(2.8lb/ft3) thickness is 43mm(1.69") and 80mm(3.15") the height is 220mm(8.66") for single panel color: white(RAL9016); silver(RAL9006); grey(RAL7045); aluminum original color
Drive System	Using three kinds of servo-motor: 0.75KW, 1.5KW and 2.2KW. This depends on the door size. Each motor assembly is with gearbox and brake. Servo-drive control the running of motor. motor drive the panel through the transmission chain and drive shaft and lift chain. The tension spring will counterbalance the weight of panel.
Electrical Requirements	standard: 220V/1PH/50/60Hz(servo-motor) oversize door: 380V/3PH/50/60Hz door sizes greater than 36m² (for 36mm thick panels) and 30m² (for 80mm thick panels)
Vision Options	The material is transparent PC with a thickness of 2mm. For 80mm thick panels the dimensions are 422mm (16.61 inches wide) x 168mm (6.61 inches high) For 43mm thick panels the dimensions are panel width through, 140mm high
Control Box	Servo-drive, metal enclosure size: 250mm (9.84"W) X 450mm(17.72"H) X 150mm(5.91"D)
Panel Retention	Guide rollers maintain panel tension over the entire length of the side frame. When the door width is less than or equal to 3M (9.84 ft.), the wind pressure is 32 M/S (3.5 KPA, 71.6 MPH). Larger doors will have wind pressures below this value.
Safety Features	low level: one pair of photoelectric sensors and wireless airbags high level: two pairs of photoelectric sensors and wireless airbags option: light curtain
Lift style	Round Spiral, Oval Spiral
Warranty	13 months after deliverylow level: 70,000 cycles or 1 year high level: 150,000 cycles or 2 years

Structural Diagram
Color Selection
Product Standard
Product Optional
Product Features
Fast opening and closing
· Opening speed 0.8m/s ~2m/s (adjustable)
· Archimedean spiral principle, double-layer turbine structure, reduce resistance, reduce friction, and run more smoothly at high speed.Windproof and heat-insulating
· The door panel adopts patented broken bridge design with good heat preservation effect, heat preservation: national standard level 3
· Resistant to 12 winds, wind resistance: national standard level 3Low failure rate
· Daily opening and closing times reach thousands of times
· Total trouble-free operation exceeds 1 million times Smart and convenient
· Radar, geomagnetism, remote control, Bluetooth, APP, etc., a variety of intelligent opening methods are available
· One-button start, interlocking, linkage, customized on demand
Product Details
Company ProfileNHentrance Co., Ltd. specializes in high-performance industrial doors, garage doors, and loading dock systems. With over two decades of expertise, NHentrance operates advanced production facilities in Wuxi and Dongtai, ensuring large-scale output and meeting the demands of global markets.
Our products adhere to stringent European industry standards and have earned prestigious certifications, including the EU CE mark, international SGS, and ISO9001 Quality Management System certification. NHentrance's commitment to quality and innovation has exported its products to over 30 countries and regions, including the European Union, the United States, Canada, France, Australia, Dubai, India, etc.
Serving industries such as manufacturing, logistics, electronics, and food processing, NHentrance delivers tailored solutions designed to meet the diverse needs of its international clients. With a dedicated R&D team, we prioritize advanced engineering, durability, and operational efficiency.
NHentrance's reputation for exceptional quality, competitive pricing, and comprehensive customer support makes us a trusted partner for businesses worldwide, offering reliable, innovative, and certified solutions for industrial applications.
Other Product Links

High Speed PVC Door view more»

High Speed Zipper Door view more»

Industrial Stacking Door view more»

Industrial Sectional Door view more»

Cold Storage Door view more»

FAQ
Q1: What types of industrial doors do you manufacture?
A: We offer a variety of industrial doors, including but not limited to high-speed PVC doors, industrial stacking doors, high-speed zipper doors, spiral doors, cold storage doors, and sectional doors.
Q2: Do your doors come with any warranty?
A: Yes, all our products come with a standard warranty, typically one year, depending on the product type and usage.
Q3: Can your doors be used in harsh environments?
A: Our doors are designed to withstand harsh environmental conditions, including extreme temperatures, humidity, dust, and chemicals. They are built to last and perform consistently over time.
Q4: Do you have a minimum order quantity requirement?
A: There is no minimum order for our doors. Please get in touch with our sales team for door accessories and door operators for further assistance.
Q5: What is the process for ordering a customized door?
A: Ordering a customized door involves a consultation with our sales team to discuss your requirements, such as size, material, and features. Once the requirements are confirmed, we will provide you with a detailed quotation and lead time for production.
Q6: How long does it take to produce a customized door?
A: The lead time for producing a customized door varies depending on the complexity of the design and current production schedules. Typically, it can range from a few weeks to two months. We will provide you with an estimated delivery date upon placing the order.
Q7: What kind of payment terms would you accept?
A: We usually accept T/T and L/C, etc. If you prefer another payment term, please discuss them with us.
Q8: How do you package your shipments?
A: Our doors are packaged in wooden crates. Please let us know if you require specific packaging arrangements.

---
