Sinotruk HOWO 8X4 Concrete Mixer Truck LHD/RHD 12cbm delivery truck lorry truck

Product Description

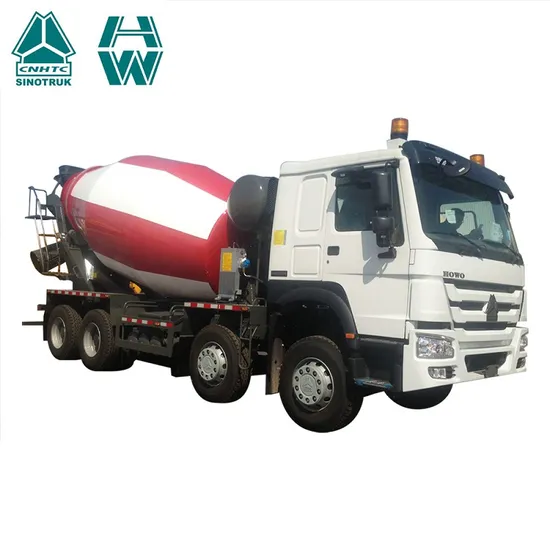

SINOTRUK HOWO Concrete Mixer Truck
Main specifications:
Cab: Two seats with one bed and A/C
Engine power: 380HP ;400hp
Emission Standard: Euro 2 ---Euro 4
Transmission:HW 19710
Steering gear: hydraulically assisted
Tire: 12.00-20; 12.00R20; 12R22.5; 315/80R22.5
Mixer Volume: 6cbm - 14cbm
Watter supply: Air pressure
Rotation Speed: 0-18R/M
Discharging Speed: 2cbm /Min at 12R/M
Remaining Ratio: 0.2%
Hydraulic system: Motor and pump are Italian brand ARK or American brand EATON; gearbox is Italian brand TOP
Trucks Advantages:
1. Fast unloading speed, 0.43cbm/ R, conventional 0.35cbm/r, 19% higher than the average product
2. Mixing evenly, special blade spiral design, to achieve three-dimensional mixing of concrete, mixing evenly, no segregation, (no segregation, determines the quality of the building works)
3. complete discharge, the residual rate is 0.4%, the average product is 0.6%, 33% higher than the average product
4. Mechanical agitation use wear-resisting material, in the easy wearing part uses the wear-resisting material to strengthen, generally the tank body uses 5-8 years
Quick feeding and unloading, mixing evenly, no segregation, complete discharge, low residual rate, good after-sales service, large loading capacity.

Main Specifications of 10 CBM concrete mixer truck
(For other tank volume, please contact me directly)

Overall Dimensions	9780mm*2496mm*3990mm(L*W*H)
Tare Weight	13950kg	Payload	35000kg
Front Overhang	1500mm	Rear Overhang	2880mm
Wheelbase	4000mm+1400mm	Track (F/R)	2022mm/1830mm
CHASSIS
Chassis Brand	SINOTRUK HOWO
Chassis Model	ZZ1257N4048W, driving type 6x4
Cab	HW76, left hand drive, air-conditioner, one sleeper
Engine	SINOTRUK WD615.47, 371hp(273KW), Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Transmission	HW19710, No. of speeds: 10 forward 2 reverse
Steering	German ZF8098, turning system pressure 18MPa
Rear Axle	HC16 tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires	Rim 9.0-22.5; tire 12R22.5, 10 units; Spare wheel carrier: with one spare wheel
Brakes	Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake

Engine:
Advantages: 1) Factory price, more competitive than agent price We, SINOTRUK Hubei Huawin is SINOTRUK branch factory 2) Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3) Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles. In Tanzania and Kenya, we have our local agents, in other countries we go to business trips about 5 times per year to solve your problem ASAP.
4) After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
5) Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly
Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer etc.
In 1983, SINOTRUK successfully introduced STEYR heavy duty truck project, in 2009, SINOTRUK signed an agreement with MAN from Germany, MAN becomes the second largest shareholder of SINOTRUK and is introducing its cabin, engine, axle and other parts into China
We, SINOTRUK Hubei Huawin is SINOTRUK branch factory
Contacts:
SINOTRUK Hubei Huawin Special Vehicle Co.,Ltd


Web: http://sinotruk-huawin.en.made-in-china.com

---
