New Electro Magnet Still Plate Lifting Magnet for Steel Industry Applications

Product Description

√ Effortlessly manage your steel handling operations with our innovative solution, capable of lifting single or multiple bunches of steel bars/rebars simultaneously.
√ Engineered to perform, our technology supports lifting even if the steel exhibits some disturbance deformation, ensuring reliability in various conditions.
√ Our product boasts a remarkable depth of magnetic permeability, ensuring stable and unwavering adsorption for the toughest tasks.
√ The motor ingeniously adjusts the beam's length without interference, except with steel, making it versatile for any operational environment.
√ Proudly carrying our own patent certificate, Patent Number: ZL201020522632.1, a testament to our commitment to innovation and quality.
Product Description
What is electro permanent magnetic technology?
Electro permanent magnet technology utilizes electricity to control the magnetic field of permanent magnet materials, manifesting either magnetic force (magnetized state) or non-magnetic force (demagnetized state). This cutting-edge application technology autonomously attracts or releases materials with precision.
In the magnetized state, an electromagnetic coil triggers instantaneous excitation current, toggling the magnetic field of reversible magnetic material. This results in a powerful adsorption force as the magnetic field envelops the pole surfaces. With no magnetic loss, it operates silently without heat or energy consumption (illustrated in Figure 1.1).
During the demagnetized state, once magnetized, the electromagnetic coil reactivates briefly, altering the reversible magnetic field via an internal circuit. The magnetic field retracts inside the permanent magnet, leaving the pole surfaces non-magnetic and releasing the material (as illustrated in Figure 1.2).
About Electro Permanent Magnet
The Electro Permanent Lifting Magnet system sets the standard for safety, unaffected by power outages or short circuits. It requires no UPS battery backup, relying solely on robust permanent magnetic materials to secure loads, only releasing them upon operator command. This ensures unrivaled safety for users.
Electro permanent magnet advantages:
1. Economical, Energy-saving, Environmentally Friendly
The electric permanent magnet system consumes electricity only during magnetic charging and demagnetization, operating without power during the working process. This leads to over 95% savings in electricity compared to traditional electromagnets, significantly reducing operational costs.
By minimizing the weight of both the lifting permanent magnet and control system, it alleviates the load on lifting equipment, enhancing lifting capability.
2. High Security
The Electro Permanent Lifting Magnet derives its magnetism from two distinct permanent magnetic materials, achieving a maximum magnetic force of 16kgf/cm². It functions without electricity during use, preventing magnetic power loss and ensuring security against material drops during power failures or cable damage. Its reliability remains intact over time, offering superior safety.
3. Easy to Use
Simplified electronic control allows for charge and demagnetization with just a button press, taking only 0.1-1 second for each process. This boosts operational efficiency. With no internal wear parts, hydraulic oil, or compressed air, it requires minimal maintenance—just keep it clean for dependable, long-lasting use.
Post-demagnetization, residual magnetic force on the surface is nearly nonexistent, preventing small magnetic particles from adhering to the magnetic poles and ensuring no residue or scratches on adsorbed materials.
4. Unique, Flexible Product Design
The interior architecture of our lifting permanent magnet is a masterpiece of engineering, featuring an innovative modular design. With dual magnetic source technology and a distinctive product manufacturing process, it boasts a truly unique internal structure, setting the benchmark for excellence.
5. Flawless Performance
The Electro Permanent Lifting magnet system epitomizes safety, being completely immune to power outages with no UPS battery auxiliary systems required. Its robust permanent magnetic materials guarantee enduring suction, always safeguarding materials, and ensuring demagnetization can only occur upon landing. This provides users with unparalleled security and peace of mind.
Electro Permanent Lifting Magnet VS Electromagnet

SEQ	Compare Content	Electro Permanent Lifting Magnet	Electromagnet
1	Magnetic	Permanent magnet Material: Reversible magnet steel,	Electricity: Magneticfield generated by Currentthrough the coil
	source	fixed magnet
2	Principle	The magnetic field is turned on or off by an	Power on generated magnetic field, power off no magnetic field
	mechanism	instantaneous current
3	Security	All steel surface, oil&water-proof, no aging issue	Epoxy resin sealed, may occur aging and shedding issue in5
			years later, need repair.
4	Reliability	The suction is constant and does not attenuate over time	Suction is influenced by the heat caused by current, the coil is
			easy aging if use long time.
5	Durability	Permanent magnet no magnetic attenuation, magnetic
	and	module is maintenance-free.	Internal coil aging fast, the UPS battery need to be replaced
	maintenance		regularly, need to preparethe accessories.
6	Operating	Only in the moment of magnetization and	Need long-term electricity power during working, big power
	costs	demagnetization need electricity, no need power	consumption, commonly known

Packaging & Shipping
Electro Permanent Magnet System Composition (Standard)
1. Electro Permanent Magnet
The pivotal core of magnetic force, it ensures direct contact and adsorption with precision and reliability. piece
2. Control System (including sound and light indicating system)
Expertly manages magnetization and demagnetization, efficiently processing all signals with ease and accuracy.
2.1. Controller for Long Distance (optional)
A compact mini control cabinet, perfectly designed for use in Crane Cabs or other limited spaces.
2.2. Remote Controller (optional)
A mini control cabinet ideal for Crane Cabs or other confined areas, providing seamless operation.
3. Cable Retracting Device
A sophisticated pull-in & out reel system to manage cable release and collection efficiently.
4. Beam
Engineered for collecting and transmitting permanent magnet tension with utmost precision.

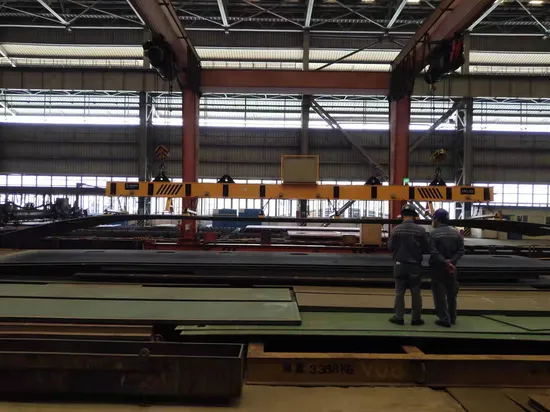

Product Pictures:
Certificates:

---
