Basic Info.
Application
Bridge Crane, Lifting Platform, Small Crane
Maximum Lifting Height
4m
Transport Package
Wooden Case
Production Capacity
1000 PCS Each Month
Packaging & Delivery
Package Size
73.00cm * 55.00cm * 53.00cm
Package Gross Weight
130.000kg

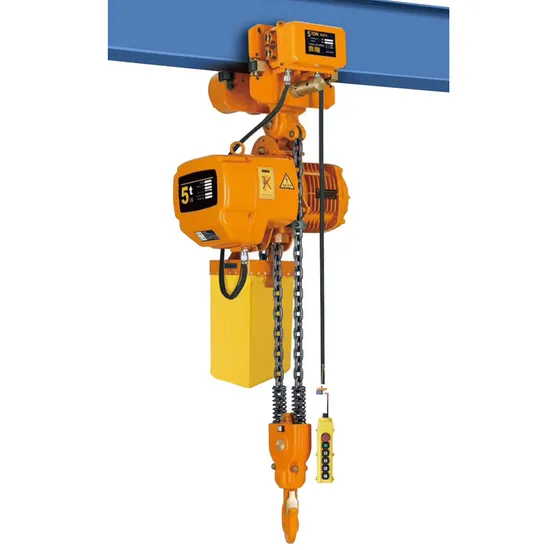

Product Description
1. Enclosure: The casing is light and sturdy. High heat dissipation. The fully sealed design is suitable
for use in environments with poor working conditions.
2. Reverse phase protection device: It is a special electrical device.
When the power supply wiring is wrong, the control circuit cannot work.
3. Limit switch: There is a limit switch device for lifting and lifting the heavy object, so that the motor
stops automatically to prevent the chain from exceeding and ensuring safety.
4. Low-voltage handle switch: The handle low-voltage control 36V device can prevent accidents
when the switch leaks during operation.
5 Brake device: The brake is braked by disc DC electromagnetic field, the braking torque is large,
stable, rapid and low noise.
6. Chain: 80 grade super heat-treated alloy steel chain makes the chain more tough and more
durable. It ensures safety during work.
Product Parameters
Model
HHBB | Wll
(T) | Height
(M) | Speed
(M/Min) | Lift motor | Travelling speed | I-beam
(mm) |
Power
(Kw) | Phase | Volt
(V) | Frequency
(Hz) | Power
(Kw) | Speed
(M/Min) | Volt
(v) |
| 01-01 | 1 | 3 | 6.8/2.3 | 1.5 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 68-130 |
| 01-02 | 1 | 3 | 3.9/1.2 | 1.1 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 68-130 |
| 02-01 | 2 | 3 | 6.8/2.2 | 3.0 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 82-153 |
| 02-02 | 2 | 3 | 3.4/1.1 | 1.5 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 82-153 |
| 03-01 | 3 | 3 | 5.6/1.8 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 82-153 |
| 03-02 | 3 | 3 | 5.8/1.1 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 82-153 |
| 05-02 | 5 | 3 | 2.8/0.9 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 100-178 |
Detailed Photos
Workshop Show
Packaging & Shipping
>>
