Prodrill Wire Saw Machine 37kw/55kw/75kw for Granite Quarry

Product Description

55KW/22KW/37KW wire saw cutting machine for granite quarry
Product Description Mainly used in quarrying for different types of marble, granit, sandstone and so on.Also can be used in stone blocks' quarring or cutting.

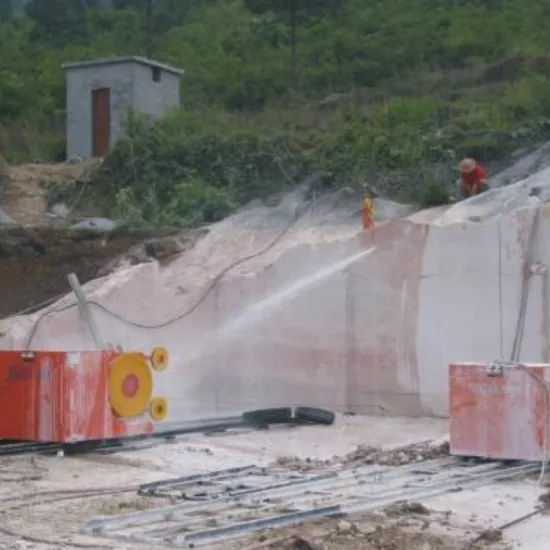

Diamond Wire Saw Machine For Stone Quarrying
Applied advanced design and fabrication technology, the machine is suitable for granite, marble and sandstone quarry opening.
The machine head can be adjusted and rotated automatically.
Imported vector frequency converters are equipped in to ensure the constant torque output. The feed speed can be adjusted automatically by the constant tension control system. The adjustment is stable, so the cutting condition is always remain the best.

The operation panel can be wire control and remote control, the monitor can show the instant current, feed speed and cutting datas
1. The wire allows greater sawing heights than large discs. It is possible to cut large block by diamond wire;
2. Thinner cutting width, and more precise;
3. By virtue of its reliability, adjust the cutting techniques according to different stone material;
4. Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques;
5. Less noice, less pollution, noise generated by diamond wire saw is much less than discs cutting.

Product Parameters

Model	PD-75	PD-55	PD-45	PD-37
Driving motor power (KW/HP)	75KW-6P/8P 100HP-6P/8P	55KW-6P/8P 75HP-6P/8P	45KW-6P/8P 60HP-6P/8P	37KW-8P 50HP-8P
Flywheel diameter (mm)	800/1000	660/800	660/800	660/800
Wire saw length (m)	20-150	20-120	20-100	20-80
Wire saw diameter (m)	11.5	11.5	11.5	11.5
Line speed (m/s)	0-50	0-40	0-40	0-40
Walking speed of machine(m/h)	0-100m/h (Slow:0.36/min;Fast:2.20m/min)
Total power (kw)	78	58	48	40
Walking motorpower (kw)	0.75 (6P)
Driving head rotation motor power (kw)	1.5 (6P)		1.1(6P)
Driving head walking motor power (kw)	1.1 (6P)
Rotation angle	360'
Driving head moving range (mm)	0-600		0-550
Rail length (mm)	4*2m+1*1m
Driving motor RPM (r/min)	980/740
Allowed working temperature	'-15°C/+40°C
Voltage	AC380±10% 50Hz
Net Weight (T)	2.8T	2.4T	2.3T	2.1T
Dimension L*W*H (mm)	2200*1450*1650		2000*1250*1500

---
