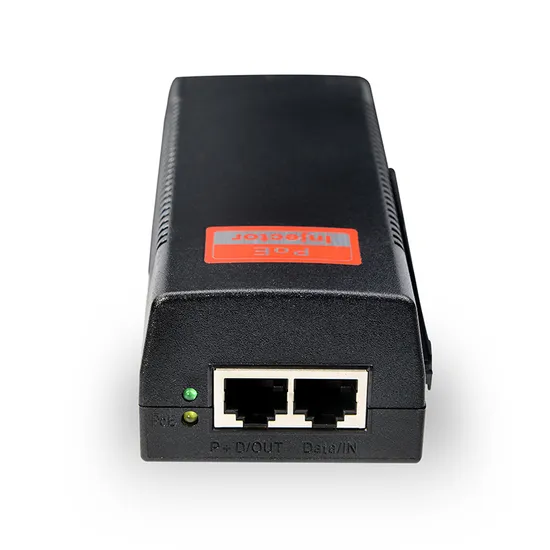

The PSE90G is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PSE90G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don't need to use AC power adapters anymore. For all the function featured in PSE90G, people can get the benefit of flexible network installation at lower cost, less downtime. Key Features Up to 90W of Power on IEEE802.3BT Safe on Low Power Devices Receive Only the Power They Need Safe and Reliable Power to WLAN Access Points Automatic Detection and Protection of Non-standard Ethernet Terminals Supports 10/100/1000Base-T LAN environment Unique interlocking feature for easy installation
| Technical Specifications Standards Compliance | Dimensions (L x W x H) / Weight
39*62.7*145mm |
| IEEE 802.3 10Base-T Ethernet | 500g |
| IEEE 802.3u 100Base-Tx Fast Ethernet | Indicators |
| IEEE 802.3af/at/bt Power over Ethernet | AC Power (Green) |
| Connector: RJ-45 10/100/1000 Mbps | PoE (Orange) |
| PoE Power Output | Environmental Conditions |
| Pin Assignment and Polarity: | Operating Temperature: -20 ~55°C |
| Data+Power Pairs 1/2 (+), 3/6 (-);4/5 (+), 7/8 (-) | Storage Temperature: -25 ~ 70°C |
| Output Power Voltage: 54-56 VDC | Storage Humidity: |
| Power: Mode-A+Mode-B 90 Watts Max. | Maximum 95%, Non-condensing |
| Input Power AC Input Voltage: 100~240VAC | |
| Requirements AC Input Current: ≤1.5A @ 100~240 VAC | |
