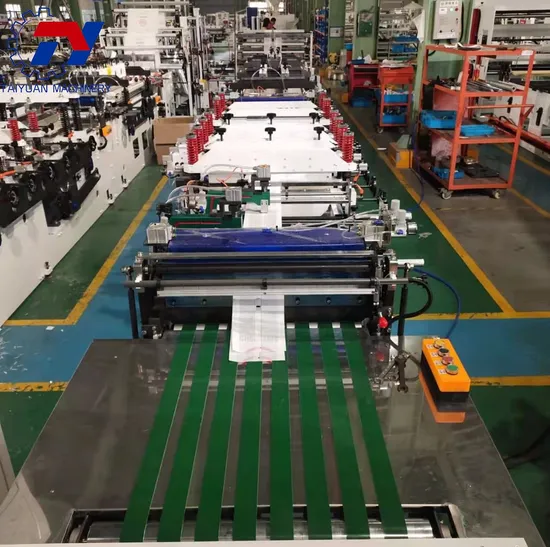

TY-600 600 servo driven three-side sealing kraft paper bubble film bag making machine
Highlights of machine:
1.This machine can make Kraft/poly/pearl film/aluminized and bubble laminate bags.
2.The machine can make bags either in one line or twin lines.
One pcs one time maximum width of making: 590mm(include the envelope flap)
Two pcs one time maximum width of making:270mm (include the envelope flap)
Length of making: 500mm
3.The machine can connect the bubble film without stopping.
This machine uses English"TRIO"motion controller to control the machine full closed-loop.
5.Three photoelectric eye tracking system which can adjust the tension of film when sealing to avoid film stretching when sealing effectively. And the electric eye is independent tracking the cutters when making printed material.
6.This machine uses "YASKAWA"double servo for fixed length.
7.Double work position unwinding frame of hot melt glue machine.
8.This machine is equipped with several film deviation controlling system to control the folding part.
9.This machine is equipped with independent computer deviation rectifying in the condition of single work position unwinding.
Introduction of machine
1.This machine is professional designed one to make Kraft bubble mailers and poly bubble mailers in one lines and twin lines.
2.The way of bag making: Laminate the poly film/Kraft paper and PE bubble film together by hot roller, and then fold the laminated material, next heat pressing and cutting into standard laminated bubble envelops.
3.This machine uses advanced motion controller technology. It is controlled by computer program from film unwinding to cutting. This machine is a high-quality , easy-operational and professional one to make good-looking and durable bubble mailers.
Technical Parameters
1.Suitable bags: Poly bubble mailer and Kraft bubble mailer.(The machine can make laminating and folding two side seal bubble envelo.)
2.Mechanical speed: 40-85 pcs/min
(Note:the actual speed of making bags may differ according to the size of bags, thickness of materials and time of fusing.)
3.Max width of bag:
One pcs one time: 590mm (including the envelope flap)
Two pcs one time:270mm (including the envelope flap)
4.Maximum length of bag: 500mm
5.Maximum width of unwinding: paper or film: 1250mm bubble 1250mm
6.Maximum diameter of unwinding: paper or film Φ600mm, bubble Φ700mm
7.Machine weight: 5500KGS
8.Overall Dimension: 20000mm*2300mm*2300mm(L*W*H)
9.Power required: 45KW
10.Voltage: 380V 50Hz Three Phase Four wire
11.Steel machine body
Main Configuration:
1. Computer control:
This machine adopts motion control system.
5.7 inches touchable human machine interface
Two sets of YASKAWA AC servo motor for fixed length.
Imported high speed three photoelectric eye tracking system
The machine has functions such as auto-counting, alarming, stopping when a set of bags been made, and showing bag number, sealer and cutter stop at the highest position etc.
cutter part The machine is equipped with cold cutter of mechanical coordinated type, which check the color mark, and then the stepper motor moves the cutter front and rear to cut the materials. This part has Plexiglas protectors.
This machine sent an extra set of cold cutter.
3.Fixed length part
This machine adopts double servo for fixed length. Two sets of servo are both belt clamp type fixed length.
4.Hot glue part:
This part is equipped with hot glue spraying device which can adhesive the hot melt glue and material together when material moves.
It has a function of transfer type incontinous glue spraying.
5.Sealing part
The machine adopts high-power vector inverter for speed regulator.
Mechanical Pressing type shaping.
The width of hot sealing is 20mm 3 sets
Cold press shaping device(including flat knife , serrated knife and cooler)
Needle bar 1 set
6.folding parts
Fold the laminated material by fold roller.
Double use folding frame(Both for one line use and twin line use). Can operate at only one side of the machine.
7.Feeding part
This part can feed laminated material automatically through the redundancy swing arms.
The machine adopts vector inverter as speed regulator and the feeding motor is equipped with a reduction gear box.
8.Laminating
Automatic unwinding of film. Feeding material by swing arms with equal tension.
The surface of heat laminated roller is protected by"teflon"material.
Feeding the laminated material by redundancy swing arms.
9.Nonstop connecting film part
This part is equipped with functions such as tailing fusing, heat press connect and three rollers redundancy device which can stably send the material to folding position.
10.Bubble unwinding part(Optional part)
This part adopts rotary unwinding frame. Cantilever type air shaft, mechanical friction to control tension.
And this part is also equipped with synchronous motor for deviation rectifying.
11. Paper or film unwinding part
This part adopts synchronous motor for deviation rectifying and it can feed the material automatically by swing arms with equal tension.
Magnetic powder for tension control.
One 3 inches air shaft and one 3 inches mechanical shaft.
12.transforming platform part
Transforming by belt, which can transform the produced envelopes in order.
This parts is steel machine body.
Supporting facilities:(The buyer supply) Power: 3-phase 4-wire AC380V 50Hz and ground earth (notes: The steel diameter must at 30-50mm, the length is more than 1.5m put into the ground, there is a line conductor which has 4 square mm at the upper) Forbid the null line connecting the machine. 2.Installation filed: In order to make the machine run well so that the buyer
must supply the good place to run machine.
5~10kg/cm² Air pressure: 5~10 kg/cm²
4.Horizontal sealing device
Structure; Large beam cushion block hot pressing structure
Drive: The main motor drives the power rod
Transmission: Vertical movement of eccentric mechanism linkage
Quantity: 3 sets of hot knives, length: 640mm 2 sets of cold knives, length 640mm
5.Thin film traction
Structure: Pneumatic rubber roller compression friction type
Drive: Medium inertia digital AC servo system
(Japan 1.5Kw, 2000r/m, Panasonic servo motor)
Transmission: M-type synchronous pulley transmission, speed ratio 1:2.4
Control form: Computer centralized control
Detection method: Integrated control of photoelectric sensor combined with proximity switch
6. Intermediate tension
Structure: Pneumatic floating tension roller structure
Control form: Computer centralized control. Dynamic motion compensation
Detection method: contactless proximity switch
Adjustment range of floating roller tension: 0~0.6Mpa air pressure, compensation range of intermediate traction motor 1~10m (computer setting, automatic interpolation)
7. Main transmission device
Structure: crank rocker push-pull four-bar linkage structure
Drive: 3.7Kw frequency converter drives 3.7Kw three-phase asynchronous motor Schneide
Transmission: Main drive motor with 1:17 reducer Taiwan Wanxin
Control form: Computer centralized control
Movement mode: The main motor drives the frame to move vertically up and down Automatic positioning device
Method: (1) Computer automatic fixed length control method Accuracy: ≤ 0.5mm
(2) Reflective photoelectric sensor tracking and detection accuracy: ≤ 0.5mm
Optoelectronic search range: 0~10 mm (range size can be set by computer for automatic search)
Correction compensation range: ± 1~± 5 mm
Positioning correction method: The servo motor is controlled by the feedback signal from the computer
9. Temperature control device
Detection method: K-type thermocouple detection
Control method: Computer centralized control, solid-state relay driven PID regulation
Temperature setting range: 0~300 degrees
Temperature measurement point: middle section of electric heating block
10.Vertical sealing device
Ironing knife: Combination bridge structure, 4 sets of upper and lower heating, hot knife length 800mm Cooling length 400mm
Transmission: Borrowing the eccentric linkage structure of the host for vertical movement
Company Profile:
TAIYUAN MACHINERY EQUIPMENT(DONGGUAN)CO.,LTD is the subsidiary of TAIYUAN GROUNP(CHINA)CO.,LTD.The TaiYuan machinery company is located in 'the world factory'Dongguan City, the the Pearl River Delta region of China, adjacent to Hong Kong and Macao.
We have over 30 years in producing Chemical, and aviation equipments;Simulated climate testing and Size measuring equipments;Automated production equipments;Food production equipments etc.,those are widely used for scosmetics, food,chemical aviation,biology, pharmaceuticals etc.Especially our independently developed aviation solid propellant mixer and liquid metal, molten salt high-temperature magnetic transmission pump are hot selling and getting so good sales volume in USA, South America,North America, Europe,Rssia,Southeast market etc,
Our company has 6000m2 working shop,with lSO, CE European certification and Manufacture License forpressure machines.We have all kinds of technical personnel.resea

---
