Basic Info.
Load Capacity
60 Tons- 240 Tons
Certification
ISO9001, CCC, ISO/TS16949
Types of Suspension Systems
Mechanic Suspension
Tire Number
Depends on The No of Axles
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Height of Platform
1075 (+310/-290) mm
Material of Main
Ah60, 40cr
Guarantee Term
Life-Long Quality Guarantee
Rim Model
6.5-15 or 17.5X6.00(10 Holes Reinforced)
Tire Model
7.50r15 or 215/75r17.5
King Pin
Size of 2" or 3.5" Inchchangable Type
Axle
Hydraulic Swing Axles
Transport Package
Bulk Ship. RO-RO
Production Capacity
150 Units Per Month
Product Description
PRODUCT DETAILS

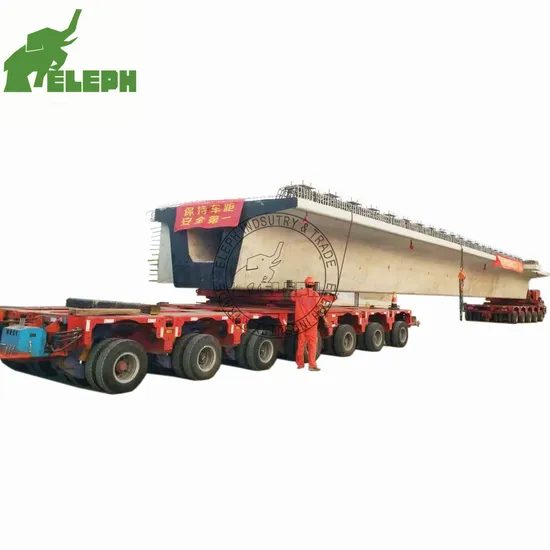

Heavy Duty Machinery Transport Dolly Trailer
|
Model
| ALP9350LBST
|
Dimension(Optional)
| Axle No.
| Rated Load (kg)
| Tire No.
| Tire Size
|
Dimension Made by Customer Machine Size,
(contact supplier for more)
| 1
| 15
| 4
|
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)
|
2
| 40
| 8
|
3
| 60
| 12
|
4
| 80
| 16
|
Manufacture
| Qingdao Eleph Industry & Trade Co., Ltd
|
Wheel Base (mm)
| 1310
|
leaf-spring Pcs
| 10
|
Axle
| 13/16/18 T
|
Suspension
| Heavy Duty Mechanic Suspension with Leaf Springs
|
Main Beam Material
| Q345B manganese plates, automatic submerged arc welded
|
Brake System
| Dual line braking system with automatic braking system/chambers
|
Brake Air Chamber
| Double Model
|
Kingpin
| 2' or 3.5' Interchangeable
|
Landing gear
| 28T loading capacity with 80T static lifting capacity.
|
Platform
| 4-6 mm diamond steel plate
|
Brake System
| Dual Lines Braking System With Automatic Air Chambers
|
Brake Air Chamber
| Four double and two single chamber
|
Electrical System
| 24V, 7core socket, lights according to European standards.
|
Mainbeam Size
| Upper plate
| 14mm
|
Lower plate
| 16mm
|
Mid Web
| 8 mm
|
Height
| 500-520mm
|
Pin Height
| According to the height of the tractor saddle.
|
Painting
| Three coats painting; Any color will be available
|
PACKING& SHIPPING
COMPANY INFO
EXPORTING CASES RELATED DESIGN FAQ 1. How To Buy From Us ? How to Pay?
- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;
TT/LC/Western Union/Credit Card
2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing
3. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
4. If We Can Provide Terms For Reducing Your Import Duties ?
- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction
>>
