Paper Cartons Die Cutting Steel Rule Flatbed Cutting Rules with Various Specifications

Product Description

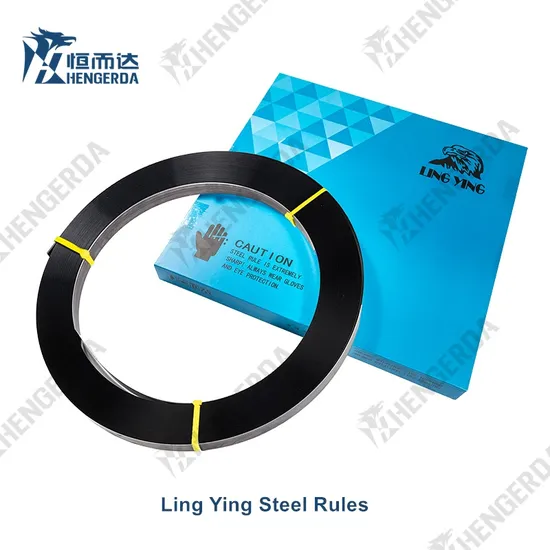

Product Photos
Product Description * Steel rules utilize materials with superior quality. The edge sharpness of shaved and ground bevels got enhanced by high-frequency quenching. The proper combination of edge and body hardness ensures high performance and a longer lifetime of products.
* Flatbed Cutting Rule Usage: Clicking / cutting steel rules are specially designed & developed for Die Cutting, and it can be formed into different shapes according to user's pattern designs.
* Steel Rules Series: CFDB, CB, SFDB, SB etc.
* Applicable to cut: Plastic films, corrugated boards, cardboards, PVC materials, electronic parts, etc.
* Self-owned brand: Ling Ying

Bevel Type	CFDB
Thickness	0.71mm (2pt)	1.05mm(3pt)	1.42mm(4pt)
Height	9.7mm-60mm
Back Finish	Shaved / Ground / Fine Ground
Applications	plastic laminated paper, stickers, paper boards, corrugated boards, gaskets, PVC materials, electronics, rubber, puzzles, plastics (PET, vacuum formed), leather, cigarette packs, etc.
Bevel Type	CB
Thickness	0.71mm (2pt)	1.05mm(3pt)	1.42mm(4pt)
Height	9.7mm-60mm
Back Finish	Shaved / Ground
Applications	Packing materials thickness smaller than 0.5mm
Bevel Type	SFDB
Thickness	0.71mm (2pt)	1.05mm(3pt)	1.42mm(4pt)
Height	23.8mm-50mm
Back Finish	Ground
Applications	thin and continuous stationery, toys, boards, suitable for cutting materials where straight / vertical cut is required.
Bevel Type	SB
Thickness	0.71mm (2pt)	1.05mm(3pt)	1.42mm(4pt)
Height	23.8mm-50mm
Back Finish	Ground
Applications	Stationery, toys, boards, suitable for cutting materials where straight/ vertical cut is required.
