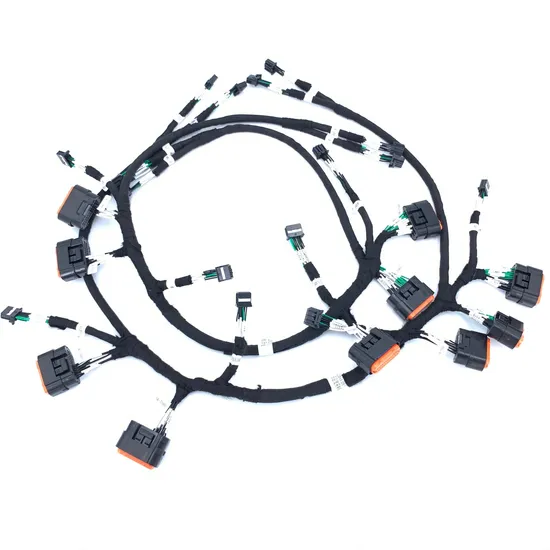

OEM BMS Acquisition Harness New Energy Vehicle High Voltage Wiring Harness EV Hv Lithium Battery Harness UL1332 Wire Jae Connector Wire Harness

Product Description

Sejow can provide OEM/ODM wiring harness based on your requirements. Over 98% of our cable assemblies are custom, incorporating custom lengths, colors, and special pinouts into our designs, as well as fully custom connectors, raw cables, overmoldings, and cable harnesses.
We pride ourselves on ou cable harness production capabilities, to provide the highest quality cable assembly solutions in the most cost-effective manner.

Model NO.	New energy vehicle power high voltage wiring harne	application	Shipping terminal, sea/Shipboard power system
Core material	Bare/tinned copper wire conductor	Connector	MX23A34SF1/MX23A34XF1/M23S05K351
Insulation material	FEP / material	working temperature	-40ºC~200ºC
Cable Type	UL1332 18#	Rated voltage	DC300V
Cable length	2M(Customizable)	Quality Control	100% Inspection Before Shipment

Specification
Type	Sectional area	Conductor			Insulation		Conductor resistance	Normal current	Maximum current
		Size	Construction	Diameter	thickness	Overall diameter
	mm2	AWG	No./mm	mm	mm	mm	Ω/KM	A	A
Stranded/UL1332	5.37	10	37/0.43	3.05	0.40	3.71	3.69	20.8	23.7
	3.29	12	19/0.47	2.35	0.40	3.01	5.64	13.1	14.9
	2.04	14	19/0.37	1.85	0.35	2.51	8.96	8.2	9.4
	1.30	16	65/0.160	1.47	0.35	2.13	14.6	5.2	5.9
	0.80	18	41/0.160	1.18	0.30	1.83	23.2	3.2	3.7
	0.50	20	19/0.19	0.95		1.59	36.7	2.0	2.3
	0.30	22	17/0.160	0.76		1.42	59.4	1.28	1.46
	0.20	24	11/0.160	0.61		1.21	94.2	0.81	0.92
	0.10	26	7/0.160	0.49		1.10	150	0.51	0.58
	0.09	28	7/0.127	0.39		0.97	239	0.32	0.36
	0.06	30	7/0.102	0.31		0.90	381	0.2	0.23

1 What can you do ?

We provide a one-stop service on connector cable, CNC machining whichincluding Wire Harness,CNC Machining, Connector Designing,Drawing,PrototypingSamplingand Manufacturing etc.

2 When can I get the quotation ?

We will quote you within 24 hours after we received your inquiry .If this is an urgent matter ,let us know and we will regard it as priority.

3 How can I get sample ?

Kindly let us know your sample requirements and we will arrange samples for your testing. Sample cost will be charged if necessary and will revert to your official order.

4 When can I except to receive sample ?

Our time frame for sample is around 2-7 days ,depends on your cable specification.

5 If I need customized cable, how will it work ?

Please send us the drawing if you have, or talk to our engineer and they will help out.

6 What is the warranty ?

All products from Sejow is granteed for two years.

7 In an unlikely event you get the faulty products, what is the solution ?

Contact us for the details and we will arrange a second shipment for free replacement after we figured out problems.

Our Services 1. We offer OEM and ODM service to our customer.2. We also provide customized size for our customer.Complete with CAD drawing draft and interrelated technical parameters, and quality requirements.3. We can provide quality product materials that are not easily damaged.
Order and Mass Production: 1) We will send PROFORMA INVOICE to you when the order is confirmed.
2) We will start to have mass production when confirming our sample and 30% T/T deposit received.
3)Customers need to confirm before formal production, we will actively cooperate.
4)Production and processing in strict accordance with customer requirements (customers can provide samples or drawings).
5)If the products need to be packed, we can provide our factory's packaging, we can also pack according to the requirements of customers.
6)We can produce according to some special needs of customers, such as tail processing; labeling; or customers provide materials for us to process injection molding, etc.
7) Quality is under strict manage and supervision during every production.

About the price:
due to different product characteristics (wire length, number of cores), the actual price is also different, our company provides a formal quotation.

About samples:
we can provide samples for free if we have stock, and charge sample fee for special samples according to the actual situation (the sample fee can be returned when it reaches the corresponding payment amount).
About payment for goods:1) T/T /Western Union/acceptable;
2) 30% deposit and 70% before shipping all goods out is acceptable for big order.

---
