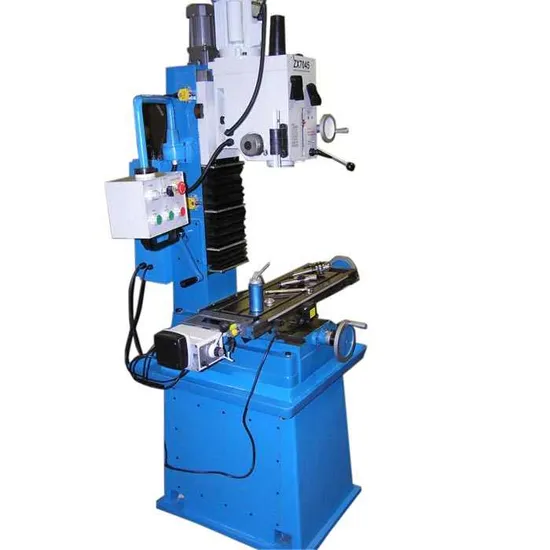

Senmo Vertical Milling Drilling Machine Zx7045 Hobby Mini for Housework

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ZX7045
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900

Product Description

Milling Drilling Machine ZX7045 Feature
·Milling drilling, tapping, boring, reaming
·Gear driving and strong cutting power
·2-step motor supply as standard for wide spindle speed range
·Worktable power feed, iron casting stand supply as standard
·Big CE electric box control supply as standard
·Hanging electrical panel control
·Headstock auto lifting by power supply as standard
·Micro feed precision

Specifications ZX7045
Max. drilling capacity (iron/steel) Ø45/32mm
Face mill capacity Ø80mm
End mill capacity Ø32mm
Working table size 800x240mm
Working table travel 560x190mm
T-Slot size 14mm
Spindle stroke 120mm
Max. distance spindle to table 460mm
Distance between spindle and column 260mm
Head tilt left and right 90°
Spindle taper MT3 or MT4 or R8
Spindle speed range (2 speed motor) 75-1600rpm
150-3200rpm
Number of speeds 12steps
Auto spindle feeds (optional) 0.1/0.18/0.26mm/r (optional)
Main motor 0.85/1.1KW
Cooling motor (optional) 40W
N.W/G.W 640/700kg
Packing dimension 1080x950x2240mm

Standard Accessories Optional Accessories
Draw bar S-Machine stand
Adapter C-Cooling system
Taper shank for drilling chuck L-Halogen light
Drilling chuck W-Work table power feeder
Arbor B-CE electrical control box(tapping)
T slot bolt F-Auto spindle feeder
Washer D-2-step motor
Nut R-Digital read out (DRO)
Tilted wedge
Spanner
Oil gun
