Basic Info.
Lamp Body Material
Aluminum Alloy
Light Source
With Light Source
Transport Package
Customary Carton/ OEM Acceptable
Production Capacity
100000/PCS Years
Product Description
FEATURES & ADVANTAGES
• 5000 LM max lamp lumen high brightness
• 100,000+ Hours long LED lifespan, with professional heat dissipation design
• 25 Years long product lifespan
• 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
• 99.9% MPPT tracking efficiency
• IP68 rated controller vs. IP66 rated electrical compartment
• 5+ Days cloudy/rainy days autonomy
• IES Type 1~5 with professional optical designs available to match different project requirements
• Flexible & Customized Working Modes with timer and motion sensor by programming
• IoT Control and online remote monitoring as optional via ZigBee or LoRaWAN
MAIN APPLICATIONS
• Expressway lighting
• Path Road lighting
• Roadway lighting
• Public Areas lighting(squares, theme parks, park lots….)

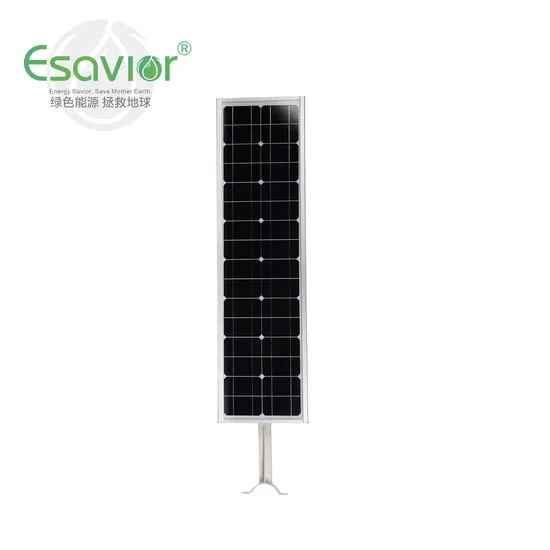

Detailed Photos
Product Parameters
| BRONZE Series | MODEL NO. ISSL-BRZ-50W |
| Solar Panel | Power | 18V/60Wp (Monocrystalline PV) |
| Life-span | 25 years |
| Batteries | Capacity/Type | 12.8V/24AH (307.20WH) / LiFePO4 Lithium |
| Life-span | 8+ years (3000 circles @60% DoD) |
| Controller | Type | MPPT / IP68/IoT Online Monitoring as Optional |
| Sensor | Microwave Radar (PIR & Timing as optional) |
| LED Light Source | Rated Power | 12V/ 50W (36LEDsx2 modules) |
| | |
| Lumens(LM) | 4500-5000lm |
| Life-span | 100,000 hours |
| Viewing Angle | 140° (Customized Angles & IES Types Available) |
| Full Charge Time | By Solar | 5 hours (STC: 1000W/m2, 25ºC ) |
| Discharge Time | Dim Mode | >55 hours |
| Bright Mode | >11 hours |
| Working Temp. | -30ºC~+80ºC |
| Color Temp. | Daylight White 5000K (full color temp. range 2700~6500K available) |
| Mounting Height/Brackets | 6~7 m/ Available Brackets: Post Top/ Arm/ Arm Tube/ Pole Clamps |
| Space Between Lights | 25~30m |
| Materials | aluminium alloy |
| Certificate | CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001 |
| Warranty | 3 years |
| Packing & Weight | Light Body Size: | 920*355*60mm |
| Net Weight | 16.0kg (Light: 13kg, bracket: 3kg) |
| Carton Type | Customary Carton/ OEM Acceptable |
| Carton size | Light: 960*400*200mm / Brackets: 900*350*190 |
| Qty/ctn | 2 lights in 1 CTN/ 6 brackets in 1 CTN |
| GW. per Carton | Light: 27.0kg/ Brackets: 19.0kgs |
| PCS per Container | 20' GP | 570 |
| 40' HQ | 1320 |
Certifications
Company Profile 13 patents were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light. ISO 9001/14001 certificates were awarded by TUV-SUD. IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates. ESAVIOR finished projects were highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government in over 100 countries. Our 3000 sqm new factory with global solar RD & Inspection Center already start operation from December 27, 2018,has the most advanced inspection equipment and faultless QA system. Esavior provides different solar solutions, which is based on customer needs, richer product line.
Thanks for your attention to Esavior, which supply solar led street light, solar garden light, flood light, and off-grid solar system, etc.
For all rang products please visit our website: esavior.en.made-in-china.com to download brochure & specification & user manual.
