High-Quality 144f Fiber Dome Closure Mechanical Seal for Durability

Product Description

Application The GJS-M0039 Mechanical Seal Dome Closure is designed to provide mechanical protection and fiber management for outdoor environments. With an IP68 rating, it is ideal for aerial, wall-mounted, or pole-mounted installations, supporting secure splicing and passive component integration in FTTX networks.

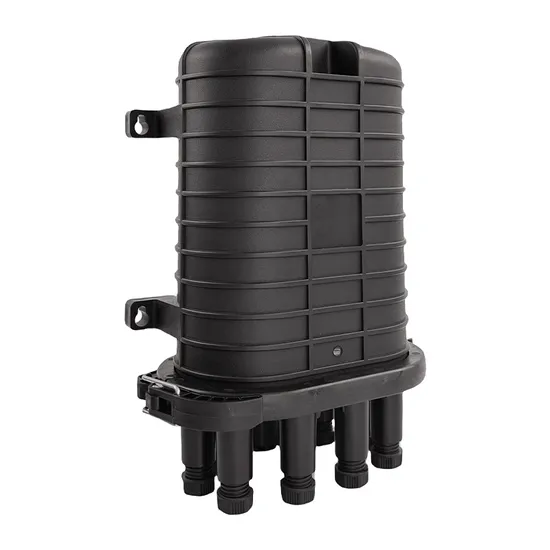

Product Description The GJS-M0039 Dome Closure offers a robust and versatile solution for managing fiber splicing and distribution. It features a durable housing made from reinforced PP and ABS with SUS 304 external metal parts for enhanced strength and environmental resistance. The closure supports up to 288 fiber splices across 12 trays and accommodates PLC splitters (1x8). With its mechanical sealing system and IK10-rated impact resistance, it ensures reliable performance in harsh conditions. The closure includes mid-span and branch ports, making it suitable for diverse deployment scenarios.

Features & Benifits High Capacity: Supports up to 288 fiber splices (24 fibers per tray) and integrates with PLC splitters (1x8). Robust Construction: Made of reinforced PP, ABS, and SUS 304 for durability and UV resistance. IP68 Protection: Offers superior water and dust ingress protection for outdoor use. Flexible Installation: Suitable for aerial, wall-mounted, and pole-mounted configurations. Mechanical Sealing: Secures cables with nut axial compression for reliable sealing. Comprehensive Port Options: Includes 2 mid-span ports (Ø16mm) and 8 branch ports (Ø14.5mm). User-Friendly Design: Compatible with P083 splice trays and P084 splitter trays for efficient fiber management. Detailed Photos
Specification

Part No.	GJS-M0039
Dimension(mm)	420 x 309 x 175
Material	MPP
Mid-span Port	2 x φ16 (Max.)
Branch Ports	8 x Ø14.5 mm
Splice capacity	12 x 6/12 =72/144 FO
Mount support	Aerial/Wall/Pole

Packaging & Shipping

Part No.	Description	Carton Size	Carton Gross Weight	Carton Capacity
GJS-M0039	Standard Accessories	64*44*39CM	20KG	4PCS/CTN

Q: Are you a factory?
A: Yes. We are factory.
Q: Can I have some samples?
A: Yes. Please contact us for samples.
Q.Do you support customization? A: Yes. We do support customization, such as logo, color, etc.
Q: What is your payment terms?
A: Normally, we do EXW price and 100% in advance or 50% in advance and 50% before the shipment.
Q: How can you guarantee product quality?
A: On the one hand, we have quality certificates. On the other hand, we have quality control management to guarantee product quality.

---
