Specially Designed for Construction Inside The Building Elevator Shaft Traction Construction Elevator

Product Description

Product Description

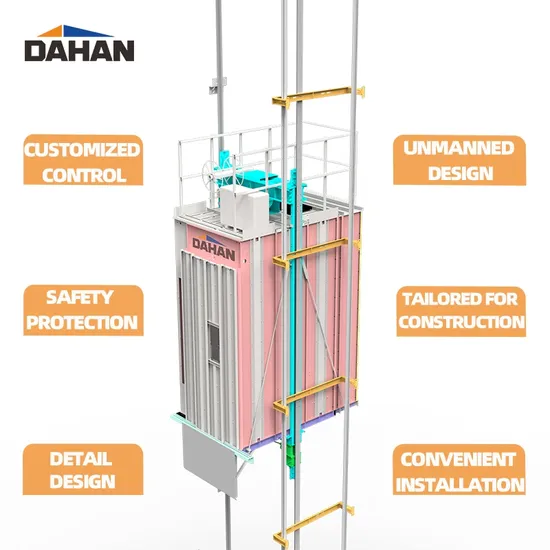

Product definition and characteristics
A dual-purpose vertical transportation facility for people and goods installed with lift well at the construction site by traction drive.
Intelligent/unmanned design.Adopt an automatic door system and selective collective automatic operation, achieving automatic opening
upon arrival/call. The floor selection button adopts direct button (similar to the elevator), which is more user-friendly. Remote monitoring,
an intelligent security monitoring system with number recognition, provides security protection.
Specially designed for construction.Adopt side counterweight arrangement to maximize the depth of the cage, making it convenient for
electric carts to enter and exit, which is more in line with the construction scenario. The opening width is greater than the width of the eleva-
tor door opening to prevent collision of incoming and outgoing goods. The standard height of the cage is 3,100 mm, which facilitates the
transportation of building materials. Laser radar protection effectively resists the interference of dust and rainwater. The structural compo-
nents are treated with electrophoresis and plastic spraying. The cage wall is made of 1.5 mm thick texture stainless steel, which effectively
resists corrosion and improves the reuse ratio. The overall cage adopts waterproof design, effectively preventing rainwater from entering.
Convenient installation/ascending design.Integrated guide rail bracket and integrated load-bearing beam design reduce on-site installa-
tion. Modular expansion scheme combination improves component interchangeability and facilitates installation. Integrated platform
design facilitates overall improvement.
Design in terms of security protection.Adopt double-slider linkage braking scheme to make the braking smoother and effectively prevent
the safety gear from rubbing against the guide rail. Specially reinforced guide shoes, equipped with an oil buffer, ensures safety. Enlarged
skylight design is more conducive to the entry and exit of installation personnel.
Customized control system design.Bluetooth debugging reduces the threshold for specialization. One-click fault clearing reduces equip-
ment failure rate. The first floor maintenance operation is beneficial for installation and maintenance personnel to carry out maintenance.
One-click call rescue system inside the cage is more user-friendly.
Thoughtful detail design.The cage aluminum alloy ladder is lighter and more convenient. The steel wire rope reel is more durable. Standard
folding table and chair set is convenient for drivers to work. Optional air conditioning makes the construction environment more comfort-
able. The power outage emergency leveling is safer and more reassuring.

Configuration list
No	Item	Configuration	Remarks
1	Opening mode	Automatic door opening
2	Cage material	1.5 mm texture stainless steel	Non-standard customization is available
3	Waterproof cage	Standard
4	Lidar anti-pinch monitoring	Standard
5	Remote monitoring	Optional
6	Number recognition intelligent control	Optional

---
