Electric Type 2ply 1600mm Corrugated Paper Single Facer Production Line

Product Description

Corrugated Single Facer Machine 2 Ply Single Facer Line Corrugated Cardboard Making machine Product Description 2 Ply Corrugated Paperboard Production Line
Single facer group = electric roll stand+single facer+sheet cutter with stacker
This Single facer Line is composed of Paper Roll stand, Single facer machine, paper cutting and single tile paper (collect) machine. To use the web paper material, single face machine production line, producing and cutting single face corrugated paper as required sizes, it forms the corrugated board with no need drying. This unit has the advantages of reasonable fabric, advanced technology, high quality of production, high efficiency, low workmanship, operation and maintenance easy. This is the preferred equipment for the production of corrugated cardboard of the cardboard factories. Electric shaftless mill roll stand 1. Max support paper diameter:1600mm
2. Up-down lift, left-right
3. Move controlled by motor
4. Expansion clamp, pneumatic control brake, adopts 2-point brake, brake stable and fast
5. with Rail and Trucks
Single facer machine
1 Paper feeding way is vacuum suction way and perfect flute formation in high speed production.
2. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
3. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
NC Reel sheet cutter with stacker
1. Change order fast, high cutting precision, fast work speed, low waste, it also suit for color-printing box package.
2. Adopts adjustable-speed motor reduce the fault caused by transmission wearing.
4. Used high speed flat type knife, high hardness with long use life. Precision adjustable gapless gear ensure accurate mesh, good cutting with high straightness, protect knife Product Parameters

Model	DW1600
Working width	1600 mm
Heating way	electric
Flute type	A B C D E F
Operate direction	Left or right according to customer's factory
Designed speed	60m/min
Economic running speed	40-50m/min
Temperature range	160-200ºC
Air source	0.4-0.8Mpa

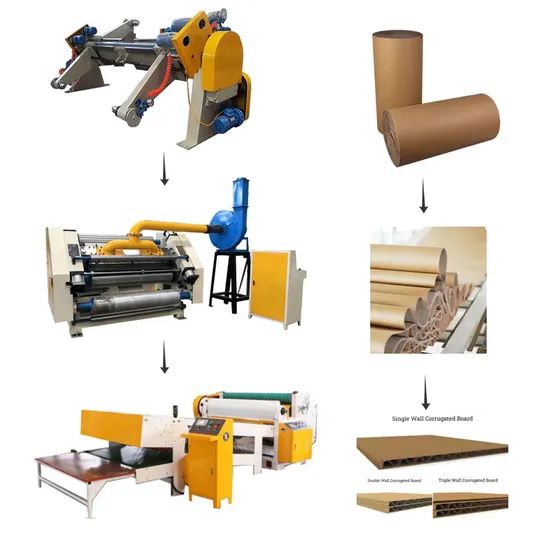

Production process

Certifications
Packaging & Shipping

---
