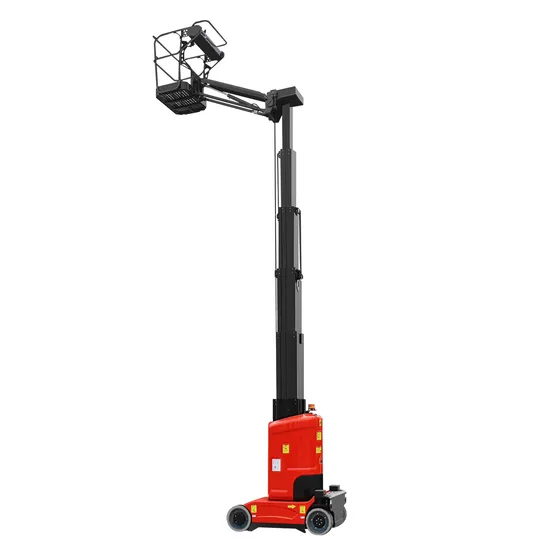

CE Certification Electric Booming Arm 8m Lifting Self-Propelled Vertical Mast Sleeved Platform

Product Description

Company Profile
VIFT forklift, founded in 2010, is a Shanghai-based leading manufacturer specializing for handing equipment from product design, production, to after-sales services for material handling equipment suppliers worldwide.We offer a wide range of products to fulfil the individual need of every customer from occasional operations to multi-shift applications in warehouse or distribution centers at high frequency level. At VIFT Forklift, we commit to producing the right truck for each application.
Product Parameters

AMWP6100 Self-propelled Vertical Mast Sleeved Platform
Model	AMWP3.6-6100	AMWP4.8-6100	AMWP6-6100
Max. Working Height	5.6m	6.8m	8m
Max. Platform Height	3.6m	4.8m	6m
Loading Capacity	227kg	227kg	159kg
Ext. Platform Capacity	114kg	114kg	114kg
Overall Length	1.36m	1.36m	1.36m
Overall Width	0.76m	0.76m	0.81m
Overall Height	1.7m	1.98m	1.98m
Platform Dimension	1.3m×0.7m	1.3m×0.7m	1.3m×0.7m
Ext. Platform Length	0.51m	0.51m	0.51m
Wheelbase	1.04m	1.04m	1.04m
Min. Turning Radius	0.3m	0.3m	0.3m
Outer Turning Radius	1.8m	1.8m	1.8m
Travel Speed(Stowed)	4km/h	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h	1.1km/h
Up/Down Speed	31/32sec	41.5/42sec	52/53sec
Gradeability	25%	25%	25%
Driving Tores	Φ305×100mm	Φ305×100mm	Φ305×100mm
Drive Motors	2×24VDC/0.5kW	2×24VDC/0.5kW	2×24VDC/0.5kW
Lifting Motor	24VDC/1.2kW	24VDC/1.2kW	24VDC/1.2kW
Battery capacity	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A	24V/15A
Service Weight	810kg	980kg	1060kg

Detailed Photos


Application Scenarios
Certifications
Customer photos
FAQ
Q1: How long is the Warranty for VIFT product?
A1: VIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually VIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: VIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, VIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can VIFT provide customized products? OEM products or ODM products?
A4: Yes, VIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: Could we request our own color for the products?
A5: Yes, of course, you just need to offer us the RAL code.

---
