Top Quality Diamond Milling Grinding Wheels for Granite Tool

Product Description

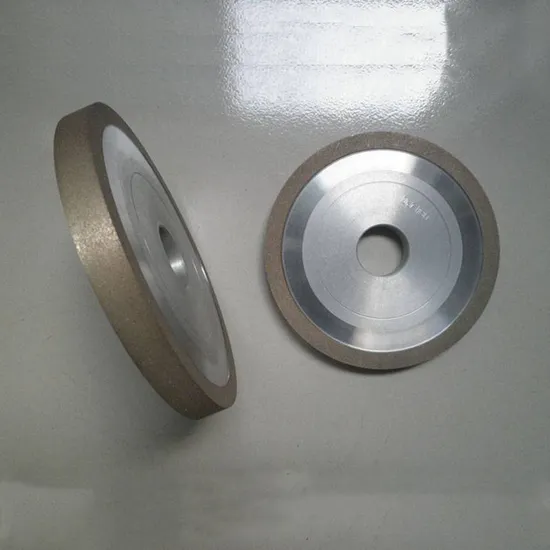

Resin Bond Diamond Grinding Wheel
Workpiece Materials Grinding tungsten carbide cutting tools, ceramic , magnetic materials, silicon , glass , quartz and thermal spraying alloy ,etc
Applicable Industry: CNC Tool Grinding, Woodworking Tool Grinding, Thermal Spraying Coated, Silicon Wafer Grinding, etcType: 1A1R, 1A1, 3A1, 1V1, 4A2, 4BT9, 6A2, 11V9, 12A2, 14F, etc
Product Details
Resin bond grinding wheels are the most commonly used super abrasive product currently. our resin diamond wheel is suitable for surface grinding, OD grinding, centerless grinding, tool grinding, fine grinding ,double disc grinding and slot grinding of most precision workpieces.
Applications
Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic ,magnetic materials, silicon ,glass ,quartz and thermal spraying alloy ,etc
Specification

Diameter(mm)	Total Thickness(mm)	Hole(mm)	Abrasive Layer Thickness(mm)
100	3/5/8/10	10/20/25/31.75/40	3/5/6/8/10
125	3/5/8/10/15/20	16/20/25/31.75/40	3/5/6/8/10
150	5/8/10/15/20/25	16/20/25/31.75/40	3/5/6/8/10
200	5/8/10/15/20/25/30	20/25/31.75/40/50.8	3/5/6/8/10/15/20
300	15/20/25/30/35/40	127/203	5/10
350	15/20/25/30/35/40/50	127/203	10
400	15/20/25/30/35/40/50	203/305	10
500	15/20/25/30/35/40/50	203/305	10
600	15/20/25/30/35/40/50	203/305	10/16/25.4/38/50
750	15/20/25/30/35/40/50	203/305	10/16
850	15/20/25/30/35/40/50	203/305	10/16/20
900	15/20/25/30/35/40/50	203/305	10/16/25.4/38/50.8

Advantages * High cutting efficiency, good self-sharpening, less blocking, reducing the grinding burn occurs when the phenomenon of work
* Good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing and other processes
* Compared to conventional silicon carbide , resin diamond wheel has good material removal rates, longer wheel life and lower grinding costs
* Resin bond diamond wheels generally remove material up to 10 times faster than metal bond wheels

---
