Natural Vent Ceiling / Side Wall Air Inlet for Swine Barn and Poultry House

Product Description

Our Company offers complex and professional provision of Pig & Poultry ventilation and full set equipment.
We offer many vale added services such as ventilation design, design and manufacture kinds of mould.
As a leader in Polyurethabe air inlet, we have earned numerous quality and service awards from our peers. additionally we provide also our clients with free consulting service as well as after warranty service.
Our long-term experience allows us for offering and performing services of the greatest quality adjusted to the individual needs of clients. Warmly welcome your inquiry .
1:Side wall air inlet
According to the actual situation, we use the raft gravity or spring open mode to open freely.
Long term use is not deformed , and the airtight is superior.
Containing bird net.
Curve rafts are favorable for air flow into the middle part of the house.

Rough Opening( mm)	10 pa	20pa	25pa
650mm X270mm	1,450m3/h	1,980m3/ h	2,150m3/ h
800mm X400mm	2,050m3/h	2,536m3/h	4,265m3/h

Item #: SA 1200 & SA1500

Rough Opening( mm)	10 pa	20pa	25pa
1200mm X400mm	3,850m3/h	5,381m3/h	6,532m3/h
1500mm X400mm	5,800m3/h	7,860m3/h	8,750m3/h

2. Tunnel air inlet
Without additional frame, easy to install
The opening of the raft plate occupies less space and saves passage space .

Item #: TA1200 & TA1500

Number of Layer	Rough Opening (mm)	10 pa	20pa	25pa
2	1200 x800	7,700m3/h	10,762m3/h	13,064m3/h
3	1200 x1200	11,550m3/h	16,143m3/h	19,596m3/h
4	1200 x1600	15,400m3/h	21,524m3/h	26,128m3/h
5	1200 x2000	19,250m3/h	26,905m3/h	32,660m3/h
2	1500 x800	11,600m3/h	15,720m3/h	17,500m3/h
3	1500 x1200	17,400m3/h	23,580m3/h	26,250m3/h
4	1500 x1600	23,200m3/h	31,440m3/h	35,000m3/h
5	1500 x2000	29,000m3/h	39,300m3/h	43,750m3/h

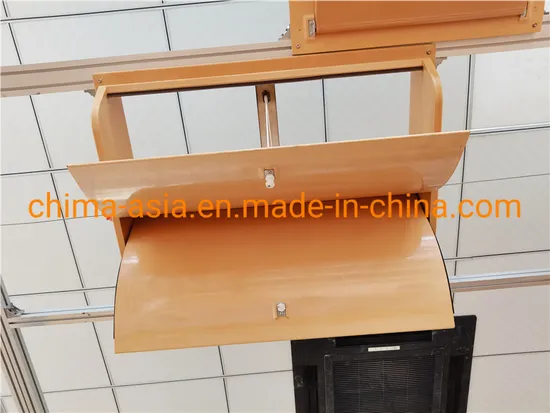

3. Ceiling air inlet

Item #: CA550 & CA480 & CA 840

Rough Opening (mm)	10 pa	20pa	25pa
550mm X450mm	1,780m3/h	2,530m3/h	2,760m3/h
480mm X700mm	1,680m3/h	2,326m3/h	2,823m3/h
840mm X700mm	3,078m3/h	4,324m3/h	5,227m3/h

4: Project:

5. Production Base.
6 :FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 15 days if the goods are in stock.Or it is 30 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer the sample for free charge ,But not free for freight cost .
Q:What is your terms of payment ?
A:Payment<=4000USD, 100% in advance.Payment>=4000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below.
Our Services
1.Fast delivery (Our factory has high production capacity and there is enough inventory to insure fast delivery for you)
2.Competitive price (We are manufacturer of our products, so we can provide you both high quality products and competitive price)
3.Perfect after-sale service (Our warranty time is 12 months, the longest in China.During the warranty time, if something wrong with our product, we can change it for you or send our engineer to your factory site to solve the problem)

---
