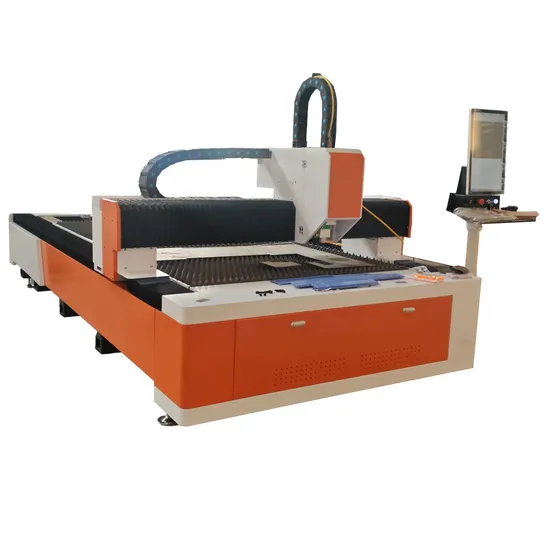

1500W 3000W 6000W Fiber Laser Cutting Machine for Cutting Sheet Metal

Product Description

Our Advantages
(1) The aviation aluminum beam is manufactured according to aerospace standards, which has good toughness, light weight, corrosion resistance, oxidation resistance, low density, and can greatly increase the processing speed.. (2) Segmented rectangular tube welded bed. High strength, strong tensile strength, and more stability, ensuring that it will not be deformed after 20 years of use.
(3)Auto focus cutting head. No manual operation, simple auto focus.
(4)Independent control cabinet. Dust-proof, automatic constant temperature.
(5)PAD design display screen. Apple pad design, vertical screen display.

Product Description
1.High performance laser equipment, stable operating system, so that the cutting effect to achieve the best.
2. Perfect cooling, lubrication, dust removal system to ensure stable, efficient and durable machine operation.
3. Single table, can be optional equipped with auxiliary loading and unloading plate function, improve processing efficiency.
4. Can be cu stomized to large format working area fiber laser cutting machine.
5. Automatic height adjustment performance, keep the focal length constant, excellent and stable cutting effect.
6. Gantry type structure, embedded cast aluminum beam, so that the equipment strong rigidity, good stability, good anti-knock performance.
Main Configuration
Thick steel welded bed structure and thick gantry bar
Auto focus laser head, raytools brand
BSC 100 height controller automatically
Auto oil lubricating system
Control cabinet
Japanese FUJI servo motor and driver
Japanese shimpo reducer
knife table
water chiller
Technical parameters

Model	ZK 3015
Working area	1500*3000mm
Optional Working Area	1300*2500mm, 2000*3000mm, 2000*4000mm, 2000*6000mm,..
Configuration	Specifications
Laser Generator	GW/Raycus/IPG
Laser Cutting Head	Raytool,
CNC Controller	Cypcut
Servo driver system	Japanese FUJI servo motor
Speed Reducer	Shimpo Reducer, Japan
Rack and Pinion:	Taiwan CSK/TBI/HIWIN guide rails
Max.cutting speed	0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Repeat PrecisionX, Y, Z Axis Repeat Precision	≤±0.03mm /m
Min line width	≤0.15mm
Maximum Empty Running Speed	120m/min
Driving way	Imported servo motor
Transmission way	Y-axis import gear rack double driver, X-axis imported ball screw
Cooling System	Water Cooling
Continuous working time	24 Hours
Power requirements	380V/3 Phases /50Hz or 60Hz
Machine size (L*W*H)	4500x2300x1800mm

Sample photos
Packaging & Shipping
We will pack machine with exporting plywood package and then by sea to ship it, if by LCL, then your machine can be shipped with others machines together, if by FCL, your machine can choose one whole container to ship it
Related products
Double use fiber laser cutting machine for flat cutting and steel pipe cutting
exchangable table double table fiber laser cutting machine
ordinary 1530 model fiber laser cutting machine
Company Profile
Jinan Zhongke CNC Equipment Co., Ltd. is a well-known CNC equipment manufacturer in China. Mainly engaged in the research and development, production, marketing, and service of CNC machining centers, panel furniture cutting machines, CNC cutting machines, cabinet door machining centers, disc tool changing machining centers, quartz stone machining centers, Baolilong machining centers, and five axis machining centers for CNC mechanical equipment. In the industrial field, we provide CNC machining equipment, services, and customized solutions to customers around the world, achieving potential customer growth, Continuously creating long-term value for customers. With the spirit of striving for progress, sharing achievements, and the service tenet of ensuring reputation and putting service first, we are steadily moving forward and continuously developing.

---
