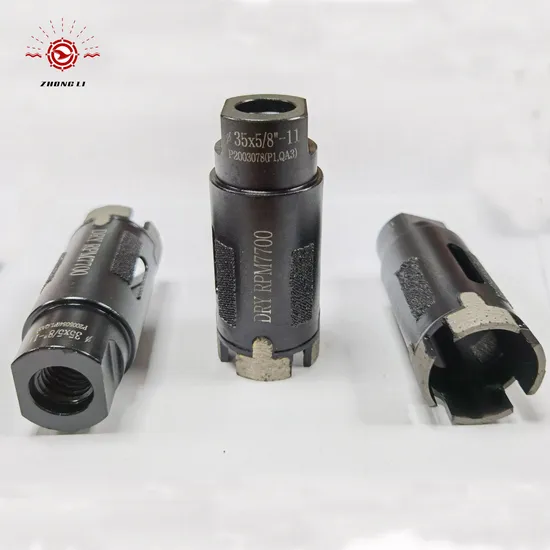

Dry Drilling Diamond Core Drill Bit for Concrete Stone Brick

Product Description

Dry drilling diamond core drill bit for concrete stone brick Products Description
Can be used for drilling granite, marble, quartz, concrete, ceremic and others.
Recommend Equipment: Makita angle grinder, RPM around 7000.
Drilling Speed:
Hard granite 2.5cm 20-30s/hole;
Medium granite 3cm 15-25s/hole
Soft granite 1.5cm 12-30s/hole
Precautions for using:
(1) Shake the angle grinder and press down evenly
(2) If to drill more than 4 holes continuously, use a cup of water to cool the drill and grinder down.
(3) Drill hard, medium, soft granite alternately, if feel hard to drill, turn to a soft stone to sharp the segments.
Technical Parameter

Dia/mm	Length	Connector	Thicknes /mm	Size of segments	No. of segments
25	450	1-1/4	2.0	12*3.5*10	4
28	450	1-1/4	2.0	12*3.5*10	4
32	450	1-1/4	2.0	20*3.5*10	3
35	450	1-1/4	2.0	20*3.5*10	4
38	450	1-1/4	2.0	20*3.5*10	4
42	450	1-1/4	2.0	20*3.5*10	4
47	450	1-1/4	2.0	24*3.5*10	4
52	450	1-1/4	2.0	24*3.5*10	5
57	450	1-1/4	2.0	24*3.5*10	5
62	450	1-1/4	2.0	24*3.5*10	6
67	450	1-1/4	2.0	24*3.5*10	6
72	450	1-1/4	2.0	24*3.5*10	7
77	450	1-1/4	2.0	24*3.5*10	7
82	450	1-1/4	2.0	24*3.5*10	8
92	450	1-1/4	2.0	24*3.5*10	8
102	450	1-1/4	2.0	24*3.5*10	9
107	450	1-1/4	2.0	24*3.5*10	9
112	450	1-1/4	2.0	24*3.5*10	10
117	450	1-1/4	2.0	24*3.5*10	10
122	450	1-1/4	2.0	24*3.5*10	10
127	450	1-1/4	2.0	24*3.5*10	10
132	450	1-1/4	2.0	24*3.5*10	11
142	450	1-1/4	2.0	24*3.5*10	11
152	450	1-1/4	2.5	24*4.0*10	12
162	450	1-1/4	2.5	24*4.0*10	12
172	450	1-1/4	2.5	24*4.0*10	13
182	450	1-1/4	2.5	24*4.0*10	13
200	450	1-1/4	2.5	24*4.0*10	15
225	450	1-1/4	2.5	24*4.0*10	16
250	450	1-1/4	2.5	24*4.0*10	17
300	450	1-1/4	3.0	24*4.5*10	21
350	450	1-1/4	3.0	24*4.5*10	23
400	450	1-1/4	3.0	24*4.5*10	25

Products Details
Beside normal teeth, the shark teeth, Turbo teeth, x-rooftop teeth are also available.
