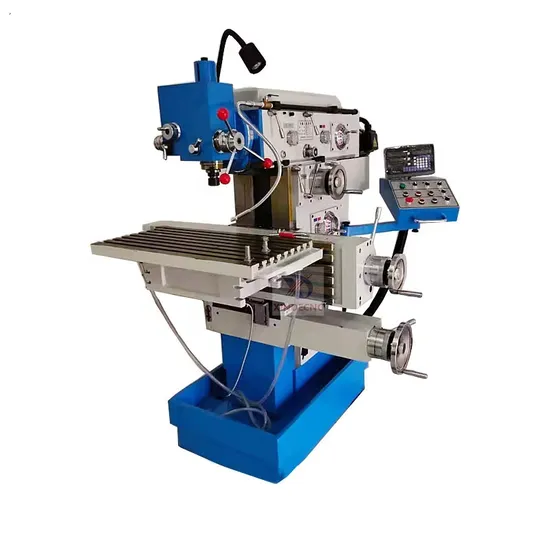

Customized/Custom Logo Universal Tool Milling Machine X8140 Milling Machine

Product Description

Technical Specification:

Specification		Unit	X8132	X8140	X8145
Work space dimensions		Mm	750*320	800*400	850*450
Vertical table dimensions		Mm	890*225	1020*225	1190 * 250
T-slots,work table		Mm	(5)14*63	(6)14*63	(7)14*63
T-slots,vertical table		Mm	(3)14*63	(3)14*63	(3)14*63
Table load capacity		Kg	160	200	300
travels	Longitudinal(X)	Mm	405	500	600
	Transverse(Y)	Mm	305	400	450
	Vertical(Z)	Mm	400	400	450
Spindle axis-to-table surface distance	Horizontal spindle	Mm	145-545	145-545	-
	Vertical spindle	Mm	50-450	50-450	-
Speed range		Rpm	(2)40-2000	(2)40-2000	(2)40-2000
Spindle mount			ISO40	ISO40	ISO40
Feeds X Y Z axis		Mm/min	10-1000	10-1000	10-1000
Rapid feed		Mm/min	1200	1200	1200
Quill stroke		Mm	60	60	60
Main motor rating		KW	3.7	10-1000	10-1000
Feed motor rating		N.M	7.7/7.7/10	7.7/7.7/10	10/10/15
Dimensions (L*W*H)		Mm	1500*1700*1800	1500*1700*1800	1600*1800*2000
weight		Kg	1400	1500	1700

Standard Accessories
Complete tools -with the machine 1 set
Milling cutter arbors and washers 1 set each
Reducing sleeves 1pcs each
Spring collets and collet chuck 2/3/4/5/6/8/10/12mm 1pcs each
Universal angular table
Optional accessories
F11-125A Dividing head
QH125 Vice
TSL250 Rotary table
QH160 Vice
TSL320 Rotary table
3 Axis DRO
Ball lead screw
Product Application
X8140 universal milling machine can complete boring, milling, drilling, inserting and other cutting processing, suitable for processing a variety of tools, fixtures, die, die and other mechanical products manufacturing and processing, medium and small molds and other complex parts, with a variety of special accessories can complete arc, rack, gear, spline and other parts processing. Machine tool accessories are: vertical milling head, dividing head, disk table, Angle table and vice, so strong function, wide use.
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

---
