High Cost-Effective Modular Cryogenic Oxygen Production Unit with Oxygen Filling Manifold with Factory Price

Product Description

Product Description KZO- Type oxygen plant is one of the most popular air separation plant in the market, which produce high quality oxygen with the purity not less 99.6%.
Benefit from application of advanced technology, KZO- oxygen plant can produce high quality and high purity O2 which can be used in both medical field and industrial field.
Considering the different operation and marketing principle, we offer different grades models for customers. There're basical model (Equiped with mannul control), basical+ model (equiped with semi-automatic control), superior model (Equiped with full-automatic control system). You can choose the model according to your detail demand. Product Parameters The specification of KZO- type oxygen plant are as following:

Performance Specification
Mode	Working condition	Product	Flow rate	Purity
KZO-	I	O2	~Nm3/h (Customized)	≥99.6%
Reference utilities consumption based on design mode
Reference installed motor power on design mode				~ (Subject to the final design)	KW
Cooling method				Air cooling/Water cooling
Working pressure				≤1.2Mpa (subject to the final design)
Start-up time				~h (subject to the final design)
Plant shutdown for scheduled maintenance				≥ 24 months

Detailed Photos

Air compressor

Pre-cooling machine

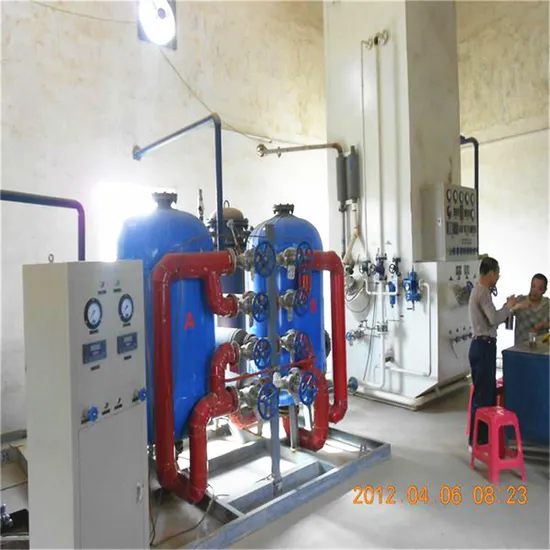

Purifying machine

Turbine expander

Fractionating column

Oxygen filling manifold

Our Advantages 1) Each unit machine is skid-mounted construction, connected by fixed-size short pipe. the whole set of plant with all pipes and valve together are delivered to the User's site, the Users needn't to buy any additional spare part by themselves, we ensure the plant's perfect and integrate.
2) The User only need prepare well the workshop, keep the ground level is ok.
3) Adopting liquid oxygen pump inner-compress technology, we can produce high-quality medical oxygen with purity range in 99.6-99.9%. The high quality oxygen products comply with the medical oxygen standard, widely used in medical and industrial area.
4) Small volume.
5) Complete set of plant is installed without foundation, it has following advantages: stable running, easy operation,
convenient maintenance, without easy-damaged spare parts within two years.
6) To ensure all valves' quality, we adopt the best-quality valve in Air separation Industry produced as the cold-valve in the Rectification column. We adopt stainless steel valve as the Purifier valve, and also install thermostability mat in the stainless steel valve to ensure that the valve is of little wear, no cooling leak, no gas leak, long life in the long-term running.
7) Advanced technology adopted in each unit can reduce power consumption greatly, and save electricity fee at the same time.
8) Complete set of plant could be transported by car easily to suburban and faraway district. That can satisfy customer's oxygen requirements in time in different areas.
9) It only takes about 15-20 days for the installation and commissioning.
10) The pipes used in the Purifier, including the connecting pipes between Purifier to Rectification column are in the conditions of cold-heat changing alternately. The temperature changes range from 5ºC~200ºC. When temperature is low, condensing-water corrode pipe, while the temperature is high, the pipe oxidized seriously. To ensure the life of connecting pipe, and safety of plant, we have made heat insulation treatment on all the pipes.
11) To ensure the safe running of the plant, we equip four-stage pipe oil-filter to ensure that no oil can enter purifier and rectification column. The pressure-difference meter in the four-stage pipe can also show the oil quantity to inform us to change the filter core, ensure the safety of follow-up plant. All filters are equipped with pressure-difference meter, we can judge the degreasing effect and the best time to change filter core, in this way we can prevent oil entering system after the filter core lose efficacy.
Related products

Model	GO2 output and purity	GN2 output and purity	Unit power consumption	Occupied Area
KZO-20	20Nm3/h, ≥99.6%	--	1.4KWH/NM3 O2	~100M2
KZO-30	30Nm3/h, ≥99.6%	--	1.4KWH/NM3 O2	~100M2
KZON-30/30	30Nm3/h, ≥99.6%	30Nm3/h, ≥99.999%	1.4KWH/NM3 O2	~100M2
KZO-40	40Nm3/h, ≥99.6%	--	1.4KWH/NM3 O2	~150M2
KZON-40/40	40Nm3/h, ≥99.6%	40Nm3/h, ≥99.999%	1.4KWH/NM3 O2	~150M2
KZO-50	50Nm3/h, ≥99.6%	--	1.4KWH/NM3 O2	~150M2
KZON-50/50	50Nm3/h, ≥99.6%	50Nm3/h, ≥99.999%	1.4KWH/NM3 O2	~150M2
KZO-80	80Nm3/h, ≥99.6%	--	1.38KWH/NM3 O2	~150M2
KZON-80/80	80Nm3/h, ≥99.6%	80Nm3/h, ≥99.999%	1.38KWH/NM3 O2	~150M2
KZO-100	100Nm3/h, ≥99.6%	--	1.38KWH/NM3 O2	~210M2
KZON-100/100	100Nm3/h, ≥99.6%	100Nm3/h, ≥99.999%	1.38KWH/NM3 O2	~210M2
KZO-120	120Nm3/h, ≥99.6%	--	1.38KWH/NM3 O2	~210M2
KZON-120/120	120Nm3/h, ≥99.6%	120Nm3/h, ≥99.999%	1.38KWH/NM3 O2	~210M2
KZO-160	160Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZON-160/160	160Nm3/h, ≥99.6%	160Nm3/h, ≥99.999%	1.3KWH/NM3 O2	~250M2
KZO-180	180Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZO-200	200Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZO-250	250Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZO-300	300Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZO-350	350Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2

Packaging & Shipping Company Profile
FAQ Q1.Are you manufacturer or trading company?
We are professional manufacturer.
Q2.What's your advantage?
Our engineers is engaged in the field of cryogenic and chemical products' technical research and development and manufacturing for
many years. Our plant adopt advanced technology, have low consumption, high efficiency, easy operation etc. advantages, could
design according to User special requirement.
Q3.Have your engineers participated in any foreign projects?
Yes, Our engineers have abundant oversea experience, could supply best after-sales service for oversea customer.
Q4.How can I get the detailed proposal and quotation?
Please tell us your specific requirements and environmental data, so that we suggest the suitable product to you.
Such as:
1)Flow rate: ____ Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Your Local altitude:___m

---
