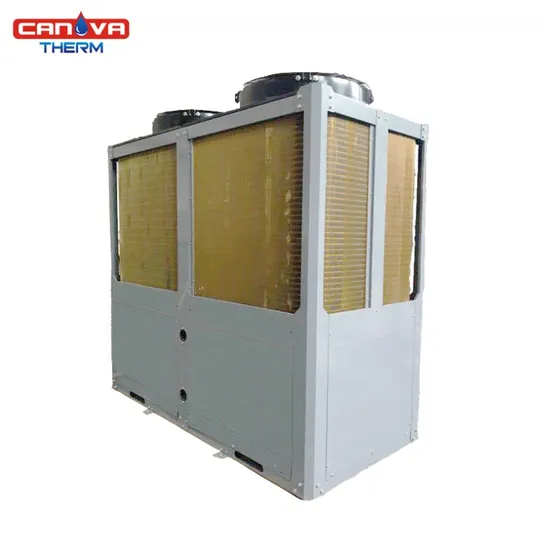

Stainless Steel 13.5kw-220kw Big Hotel Use Swimming Pool Water Heater Equipment Factory

Product Description

Stainless steel 220KW big pool heating equipment factory
This series applies titanium heat exchanger and heat pump technology which can move heat from surrounding to the pool water.It is specially suitable for commercial swimming pool and it can supply heating in winter and cooling in summer.

Model		HLRD45-YC	HLRD60-YC	HLRD75-YC	HLRD125YC	HLRD150-YC
Heating capacity	Kw	66	87.4	110	176	220
COP		4.46	4.65	4.72	4.66	4064
Cooling capacity	Kw	44.9	59.5	75.0	120	150
EER		2.77	2.71	2.80	2.72	2.72
Max outlet water temp	ºC	45
Power supply	V/Hz	380~415/50
Rated input power(Heating/cooling)	Kw	14.8/16.2	18.8/22.0	23.326.8	37.8/44.1	47.7/55.1
Rated input current(Heating/cooling)	A	28.1/30.8	35.7/41.8	44.3/50.9	71.8/83.8	90.0/105.0
Max input power	Kw	18.9	25.4	31.5	51.0	63
Max input current	A	35.9	48.2	59.8	97.0	120
Ambient temp.	ºC	-7~43
Heat exchanger		Titanium tube in PVC shell
Refrigerant		R407C(R22/R410A)
Compressor type		Scroll
Fan air flow volume	M³/h	19500	28000	28000	56000	56000
Fan discharging		Vertical
Fan input power	W	550*2	750*2	750*2	750*4	750*4
Noise	dB(A)	≤66	≤66	≤68	≤75	≤76
Piping diameter	mm	Rc2-1/2''			Rc3''
Discharge pressure	Mpa	2.5
Suction pressure	Mpa	0.3-0.8
Rated water pressure	Mpa	0.2-0.6
Water flow volume	M³/h	28	37	47	75	95
Product Dimension	mm	1445/850/1850	1990/980/2045	1990/980/2045	2400/1900/2060	2400/1900/2060
Net weight	Kg	450	472	680	1160	1260
Testing condition:	Heating: Ambient temp(DB/WB):24ºC/19ºC,62.5%RH,Inlet water temp(imput/output):26ºC Cooling: Ambient temp(DB/WB):43ºC/37ºC,68%RH,Inlet water temp(imput/output):32ºC

Features All range of capacity from 13.5KW to 220Kw Panasonic rotary/American Copeland scroll compressor Titanium tube in PVC shell heat exchanger Compact structure Intelligent defrosting Stable running,economic&durable Easy installation&operation Cooling in summer&heating in winter
Installation Diagram

---
