Welcome to visit

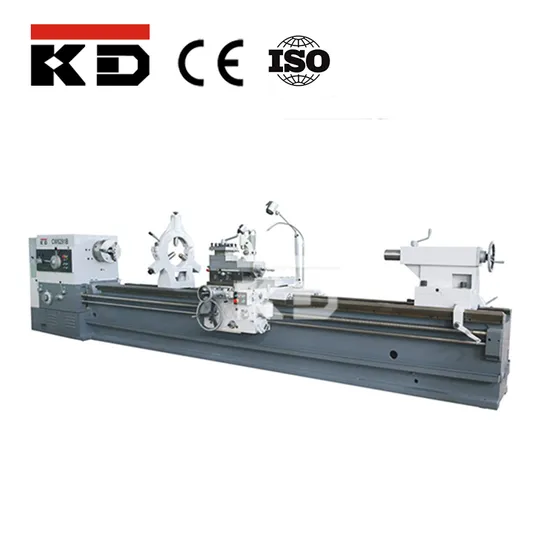

Gear Head Conventional Engine Lathe Cw62110b/2000

US$3,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CW62110B/2000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Bed Width
600mm
Spindle Bore
105mm
Max Swing Over Bed
1100mm
Motor Power
11kw
Colour
Any Colour
OEM
Yes
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
130 Sets/Year

Product Description


Product Features
1. Precision ground and hardened bed ways, long life and low noise.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. Rapid feed structure is available on apron.
4. Clutch in headstock makes the lathe start smoothly and brake quickly.
PRODUCT SPECIFICATIONS
MODELS
CW6291B
CW62100B
CW62110B
CAPACITY
Max. swing over bed
Ф910mm
Ф1000mm
Ф1100mm
Max. swing over carriage
Ф580mm
Ф580mm
Ф680mm
Max. swing over gap
Ф1100mm
Ф1200mm
Ф1300mm
Effective length of gap
400mm
Width of bed
600mm
Max. length of workpiece
1.5/ 2/ 3/ 4/ 5/ 6/ 8m
Max. turning length
1.35/ 1.85/ 2.85/ 3.85/ 4.85/ 5.85/7.85 m
Max. weight of workpiece
2000kg
SPINDLE
Spindle nose
D11
Spindle bore
Ф105mm
Taper bore of spindle
Metric Ф120 1:20
Steps of spindle speed
4 STEPS
Range of spindle speed
10~630rpm
5~645rpm
FEED RANGE OF TOOL POST FOR PER REVOLUTION OF SPINDLE
Number of longitudinal feeds
64
Range of longitudinal feeds (1:1)
0.1~1.52mm/r
Range of longitudinal feeds (16:1)
1.6~24.3mm/r
Number of cross feeds
64
Range of cross feeds
Half of longitudinal feeds
RAPID TRAVEL
Longitudinal
4000mm/min
Cross
2000mm/min
THREADING
Metric pitch threads
1~240mm/ 50
Whit-worth threads
14~1TPI/ 26
Module threads
0.5~120M.P/ 53
D.P.Threads
28~1DP/ 24
TAILSTOCK SLEEVE
Taper bore
M.T.NO.5
Max.travel
250mm
External diameter
Ф100mm
OTHERS
Vertical distance from spindle center to installing basis
33mm
Max.travel of compound rest
200mm
Swing angle of tool post
±90°
Max travel of cross slide
500mm
570mm
620mm
Size of tool shank
32×32mm
Main motor power
11kw
Rapid feed motor power
1.1kw
Coolant pump power
90w
3m machine overall dimension
5155x1450x1630mm
5155x1450x1685mm
5155x1450x1735mm
3m machine net weight
7050kg
7550kg
8050kg
