| US$4,200.00-6,000.00 | 1 Piece (MOQ) |

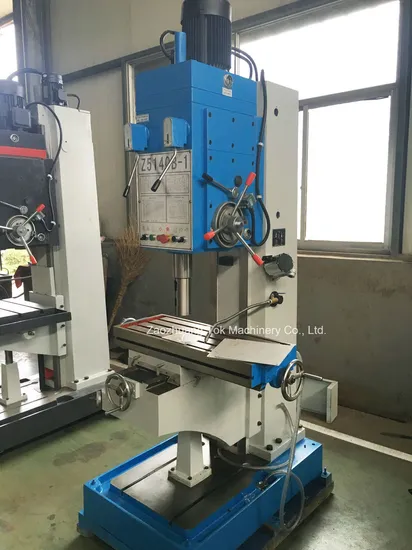

| Specification | Unit | Z5150B | Z5150B-1 |
| Max drilling diameter | mm | 50 | 50 |
| Spindle taper | MT5 | MT5 | |
| Spindle travel | mm | 250 | 250 |
| Spindle box travel(manual) | mm | 200 | 200 |
| Spindle speed steps | 12 | 12 | |
| Spindle feed steps | 9 | 9 | |
| Spindle speed range | r.p.m | 31.5~1400 | 31.5~1400 |
| Table size spindle feed range | mm/r | 0.056~1.80 | 0.056~1.80 |
| Table size | mm | 560 x 480 | 800 x 320 |
| Longitudinal(cross)travel | mm | - | 450/300 |
| Vertical travel | mm | 300 | 300 |
| Max distance between spindle and table | mm | 750 | 750 |
| Main motor power | kw | 3 | 3 |
| Overall size | mm | 1090x905x2530 | 1090x905x1200x2530 |
| Net weight | kg | 1270 | 1370 |
