Henan Huadong 1/0 2/0 100mm2 336.4 Mcm ACSR Overhead Aerial Bundled Reinforced Steel Bare Aluminium Conductors

Product Description

Product Description
Henan Huadong 1/0 2/0 100mm2 AAC AAAC ACSR Overhead Aerial Bundled Bare Aluminium Conductors
AAC Application: AAC used in overhead electric power transmission and distribution lines with various grade voltages.
Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart
from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties
AAAC Application: The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power
loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC
can save 5-8% of the construction cost.

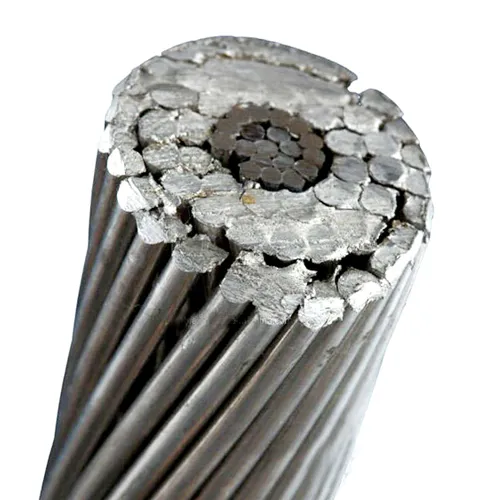

ACSR Application: Used as bare overhead transmission conductor and as primary and secondary distribution conductor
andmessenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength
to be achieved without sacrificing ampacity.
ASTM B231 AAC Bare Conductor Parameter

Code Name	Total Area		Stranding /wire dia	Approximate Overall Dia	Linear Mass	Nominal breaking Load	Maximum Resistance at 20ºC	Current Rating
	Awg/mcm	mm2	mm	mm	Kg/km	dan	Ω/km	A
Peachbell	6	13.29	7/1.554	4.67	37	249	2.1692	72
Rose	4	21.16	7/1.961	5.89	58	396	1.3624	104
Iris	2	33.61	7/2.474	7.41	93	597	0.8577	136
Pansy	1	42.39	7/2.776	8.33	117	732	0.6801	157
Poppy	1/0	53.48	7/3.119	9.36	147	873	0.5390	180
Aster	2/0	67.42	7/3.503	10.51	186	1100	0.4276	207
Phlox	3/0	85.03	7/3.932	11.80	234	1347	0.3390	237
Oxlip	4/0	107.23	7/4.417	13.26	296	1698	0.2688	273
Valerian	250	126.71	19/2.913	14.57	349	2062	0.2275	305
Sneezewort	250	126.71	7/4.80	14.40	349	2007	0.2275	300
Laurel	266.8	135.16	19/3.01	15.05	373	2200	0.2133	317
Daisy	266.8	135.16	7/4.96	14.90	373	2141	0.2133	313
Peony	300	152.00	19/3.193	15.97	419	2403	0.1896	340
Tulip	336.4	170.45	19/3.381	16.91	470	2695	0.1691	364
Daffodil	350	177.35	19/3.447	17.24	489	2804	0.1625	373
Canna	397.5	201.42	19/3.673	18.36	555	3184	0.1431	401
Goldentuft	450	228.00	19/3.909	19.55	629	3499	0.1264	432
Syringa	477	241.68	37/3.882	20.19	666	3849	0.1193	449
Cosmos	477	241.68	19/4.023	20.12	666	3708	0.1193	447
Hyacinth	500	253.35	37/2.951	20.65	698	4035	0.1138	461
Zinnia	500	253.35	19/4.12	20.60	698	3888	0.1138	459
Dahlia	556.5	282.00	19/4.346	21.73	777	4327	0.1022	489
Mistletoe	556.5	282.00	37/3.114	21.79	777	4362	0.1022	493
Meadowsweet	600	304.00	37/3.233	22.63	838	4703	0.0948	513
Orchid	636	322.25	37/3.33	23.31	888	4985	0.0894	531
Heuchera	650	329.40	37/3.37	23.59	907.4	5170	0.0875	538
Flag	700	54.71	61/2.72	24.48	978	5146	0.0813	563
Verbena	700	354.71	37/3.493	24.45	978	5487	0.0813	562
Nasturtium	715.5	362.58	61/2.75	24.76	1000	5874	0.0795	570
Violet	715.5	362.58	37/3.533	24.74	1000	5609	0.0795	570
Cattail	750	380.00	61/2.817	25.35	1048	5985	0.0759	586
Petunia	750	380.00	37/3.617	25.32	1048	5875	0.0759	585
Lilac	795	402.84	61/2. 90	26.11	1111	6345	0.0715	607
Arbutus	795	402.84	37/3.724	26.06	1111	6232	0.0715	605
Snapdragon	900	456.06	61/3.086	27.78	1257	6978	0.0632	653
Cockscomb	900	456.06	37/3.962	27.73	1257	6848	0.0632	651
Goldenrod	954	483.42	61/3.177	28.60	1333	7896	0.0596	675
Magnolia	954	483.42	37/4.079	28.55	1333	7258	0.0596	674
Camellia	1000	506.71	61/3.251	29.36	1397	7753	0.0569	693
Hawkweed	1000	506.71	37/4.176	29.23	1397	7608	0.0569	693
Larkspur	1033.5	523.68	61/3.307	29.76	1444	8012	0.0550	707
Bluebell	1033.5	523.68	37/4.244	29.72	1444	7863	0.0550	706
Marigold	1113	563.93	61/3.432	30.89	1555	8628	0.0511	738
Hawthorn	1192.5	604.26	61/3.551	31.05	1666	9245	0.0477	767
Narcissus	1272	644.51	61/3.668	33.02	1777	9861	0.0477	797
Columbine	1351.5	684.84	61/3.78	34.01	1888	10478	0.0421	825
Carnation	1431	725.10	61/389	35.03	1999	10768	0.0398	854
Gladiolus	1510.5	765.35	61/4.00	35.09	2110	11365	0.0376	881
Coreopsis	1590	805.68	61/4.099	36.51	2221	11964	0.0358	907
Jessamine	1750	886.71	61/4.302	38.73	2445	13168	0.0325	959
Cowslip	2000	1013.42	91/3.76	41.40	2791	15300	0.0285	1035
Sagebrush	2250	1140.00	91/3.99	43.89	3166	16700	0.0255	1108
Lupine	2500	1266.67	91/4.21	46.30	3524	18700	0.0230	1178
Bitterroot	2750	1393.00	91/4.42	48.62	3872	20500	0.0209	1242
Trilium	3000	1520.13	127/3.90	50.75	4232	22500	0.0192	1308
Blue Bonnet	3500	1773.50	127/4.21	54.80	4985	26200	0.0166	1425

Customer Project
Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
