Motor Driven Screw Extruded EPS Foam Compaction Recycling Machine

Product Description

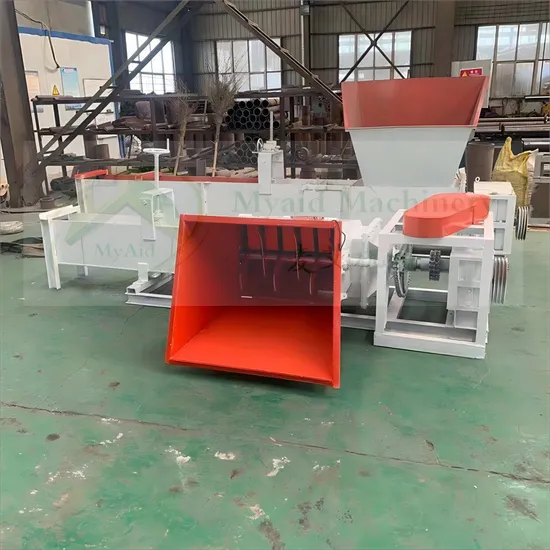

Introducing the cutting-edge EPS Compaction Machine.
This innovative EPS Compaction Machine efficiently shreds and compacts large, lightweight EPS polystyrene foam materials into high-density, small-size briquettes. Transporting loose foam materials is costly due to their voluminous nature, as 95% of polystyrene beads are air. Compacting them not only saves space but also reduces transportation expenses significantly.
Our versatile EPS Compaction Machine offers two power system options: it can be driven by an electric motor or powered by a diesel engine, ensuring flexibility and adaptability to various operational environments.
Imagine the convenience of seeing foam waste scattered in small volumes everywhere; with our compactor mounted on a truck, it can be driven to different locations to efficiently collect and compact foam waste on-site, promoting eco-friendly practices and operational efficiency.
Machine Application
Machine Advantage
Machine Parameter

Model No.	300E	300H	300V	400H	400V
Brick Size	300*300mm	300*300mm	300*300mm	400*400mm	400*400mm
Capacity	150kg/h	150kg/h	175kg/h	250kg/h	300kg/h
Diesel Engine	Single cylinder	Single cylinder	Single cylinder	Four cylinders	Four cylinders
	18kw	22kw	22kw	48kw	48kw
	L25	L32	L32	4102	4102
	Turn on automatically by battery power or manually by rocker
Hopper Size	830*760mm	830*760mm	1100*800mm	1200*1000mm	1200*1000mm
Machine Size	3000*1500*1200	3000*1700*1200	3000*1700*1400	4600*1600*1600	4600*2800*1400
Machine Weight	1000	1050	1050	1600	1600
Motor Power - optional	11kw	11kw	15kw	15kw	22kw

Principle
Company Profile

---
