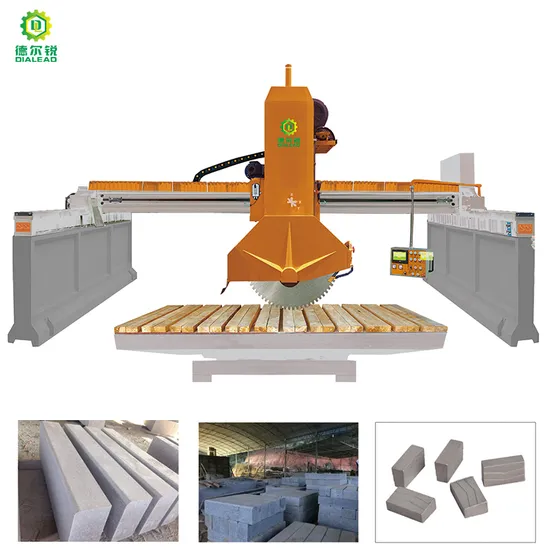

Dialead Dl-1600 Automatic Bridge Type Single Saw Blade Medium Size Block Cutting Machine

Product Description

Product Description
DIALEAD is the top stone machine and stone tools manufacturer in China with a history of more than 20 years.
Medium Bridge Cutting Machine uses hydraulic lifting system. it is your ideal choice for medium size block or curbstone processing.
1. Mechanical part: The cross beam is cast as a whole with a length of 5 meters and cross-sectional size of 400X430. The beam cover adopts windproof organ cover. The side beam is 4.7 meters long. All beams are designed with wide oil grooves. The main engine is lifted with four solid and chrome-plated guide columns with a diameter of 100mm. Four columns are protected with wear-resistant guide bushes of ductile cast iron. All guide columns are all oil-immersed lubricated, so waterproof, dust-proof and durable. Connecting plates are integrally cast. The whole machine adopts anti-rust screws. The main shaft box adopts first-level gear speed change. The bearing adopts deep groove ball bearing. The side beam transmission adopts screw nut transmission. The position of the transmission beam motor reducer adopts waterproof offset setting.
2. Electrical part: wall-mounted electric control cabinet, PLC computer operating system, LCD touch screen with Chinese and English operation interface, main motor 22KW-6P, total power 23-26.5KW.
3. Hydraulic part: The main engine has double hydraulic lifting and double-layer thickened high-pressure oil pipes.
4. The diameter of the spindle is 50MM, the diameter of the blade holder is 300MM, and only 1 piece of blade can be hung , diameter Max. 1200mm.
Technical Data
All technical data can be customized to meet your specific needs.

Blade diameter (mm)	900	1200
Vertical stroke of blade (mm)	Φ600-900	Φ1000-12000
Max. cutting dimension (LxWxH/mm)	3000X1600X300	3000X1600X450
Worktable rotation	0-360°	0-360°
Main motor power (kw)	18.5	18.5
Power requirement	3 Phs 380V 50Hz, other is available	3 Phs 380V 50Hz, other is available
Water consumption (cbm/h)	4	4
Worktable dimension (mm)	3000X2000	3000X2000
Overall dimension (mm)	6000X5000X4200	6000X5000X4200
Approx. Weight (kg)	6000	6500

Machine Details

Packaging & Shipping
Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
Certifications
Exhibition

FAQ

---
