Portable Infrared CH4 CO2 O2 H2s Biogas Analyzer with Sampling Pump

US$1,200.00-1,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
IRCD4
Brand
Shian
Customized
Customized
Portable
Portable
Certification
CE
Gas
CH4 CO2 H2s O2
Type
Ndir & Electrochemical
OEM
Gas, Function, Program, Case
Transport Package
Neutral
Specification
0.5kg per product
Trademark
Shiantech
Origin
Beijing China
Production Capacity
10000000PCS Per Month

Product Description

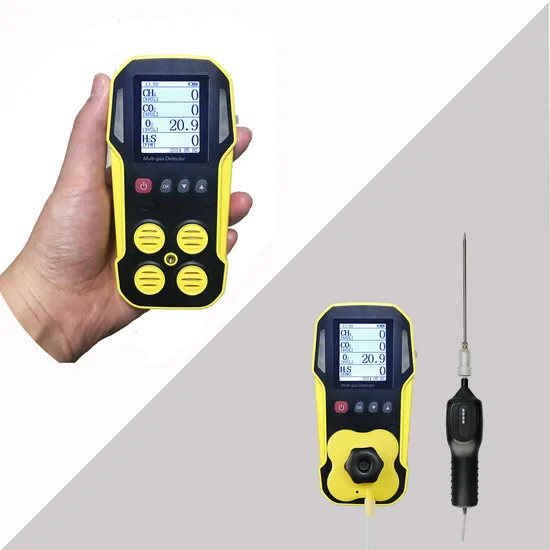

IRCD4 Portable biogas analyzer with sampling pump Infrared biogas detector
1. Application
CH4, CO2, H2S, O2 Portable Biogas Gas Analyzer is extensively used in petroleum, petrochemistry, chemical industry, gas, coal, metallurgy and power system;safety detection in municipal administration, communication and traffic tunnel construction; electronics and semiconductor industry, animal husbandry, biogas plant & biogas digester and other places where toxic and harmful gases exist.

IRCD4 biogas detector can be also used in food & beverage industry, agriculture, medical industry, lab, etc for related gas analysis.
2. Specification
Gases detected
CH4, CO2, H2S, O2
Measuring range
CH4: (0-100)%vol
CO2: (0-100)%vol
H2S: (0~1000) ppm
O2: (0~30.0)%vol
Resolution ratio
CH4: 0.01%vol, CO2: 0.01%vol,
H2S: 1ppm, O2: 0.1%vol
Sensor
Infrared sensor and electrochemical sensor
Sensor lifetime
≥5years( CH4, CO2)
≥2years( H2S, O2)
Response time
CH4: ≤45S ( T90 )
CO2: ≤45s (T90)
H2S: ≤45s (T90)
O2: ≤35s (T90)
Alarms
Audible--buzzer with ≥80dB audible
Visible--flashing red LED, ≥20m visible
Alarm point
Fully adjustable
Data logging (optional)
Continuous Data logging (1900 events at
configurable 0.1-10 minutes intervals)
Continuous working time
≥13hours
Display
Liquid Crystal Display(LCD)
Battery model
PL123450, 3.7V/1500mA
Charging time
4-5 hours
Dust and water resistance
IP65
Size & Weight
130*66*30mm, 250g
Ex sign
Exibd I

3. Product Features:
1. Handheld, industry use, high sensitivity and accuracy
2. Intrinsically safe, Ex sign is ExibdI
3. Rugged ABS+PC case, heavy duty, crash resistant
4. High-capacity chip, 4 layers PCB board
5. Visual & audible alarm
6. High & low alarm point, fully adjustable
7. Low battery alarm
8. Rechargeable battery
9. LCD large screen display with Real time clock and status of battery
10. With Stainless Steel belt clip
11. Support data logging function
12. External air sampling pump is available for gas leak detection.
13. Multi gas detector can be made for any 2-5 gases in any combination.
Standard accessory:
USB extension cord, charging adapter, calibration cap, calibration hose, stainless steel alligator clip, hanging cord, leather case, manual
Optional accessory:
External gas sampling pump, professional suitcase, data logging function
Beijing Sh'an Technology Instrument Co., Ltd is a manufacturer in Beijing, China. It focuses on gas detection products from designing, engineering, programming, molding to assembly, testing, calibration and maintenance.

Shiantech is ISO9001 approved and SGS audited and we have Ex certificate, safety certificate and CE certificate for our portable gas detection products.

ODM and OEM are always welcomed and tailored products and solutions are the essential and ultimate goal we are ready to deliver to our esteemed customers.
