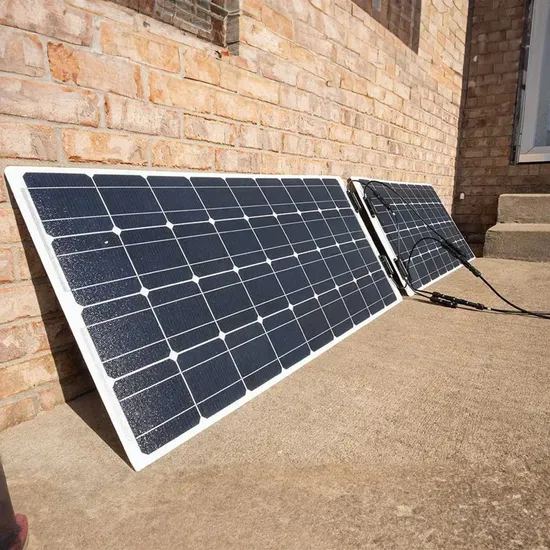

Portable Monocrystalline Silicon Flexible Solar Panel RV Camping

Product Description

Solar panel refers to a panel designed to absorb the sun's rays as a source of energy for generating electricity or heating. Solar
Photovoltaic panels constitute the solar array of a photovoltaic system that generates and supplies solar electricity in commercial and
residential applications. A single solar module can produce only a limited amount of power; most installations contain multiple modules
Product Parameters
1. All solar module produces without any aberration or bubble.
2. Back sheet is TPT&PET, and the thickness is 0.3mm.
3. The thickness of EVA is 0.4mm,better than other company use 0.3mm or 0.35mm.We use new EVA material, not the overdue, the
overdue EVA will influencethe performance and lifespan of solar panel.
4. New aluminum with 1.00mm thickness, high hardness, good impact resistance. Some company will use bad recycle aluminum.
5. Tempered glass with 3.2mm has advantages of high strength, impact resistance,good light transmittance.
6. The solar cells made in Taiwan, high efficiency, low attenuation,the attenuation is less than 10% within 5 years and less than 15% within
10 years.
7. The junction box has good waterproof, good anti-aging,PV wire. The PV wire is good for anti-aging and anti-corrosion, it's
better than the normal wire.
8. Package by 7 layers thick carton, moisture proof and anti-cracking. Two pieces in one carton, easy to delivery.

50W mono flexibility Solar panel
Module Type	ZY-F50W
Peak power(Pmax)	50W
MPP voltage(Vmp)	18V
MPP current(Imp)	2.7A
Open circuit voltage(Voc)	21.6V
Short circuit current(Isc)	2.9A
Module efficiency	14.50%
Power Tolerance	±3%
Operating Temperature	-40ºC~+85ºC
Product certification	CE/ROHS
Dimensions	700*510*2.5mm
No. of Cells	36PCS(4*9)
Weight	1.5kg
Junction Box	IP65
Output Cables	2.5mm²*900mm
Connectors	MC4 compatible
Box Size	75*8*58cm
Packing Type	1PCS/CTN
weight	1.5kg/CTN
100W mono flexibility Solar panel
Module Type	ZY-F100W
Peak power(Pmax)	100W
MPP voltage(Vmp)	18V
MPP current(Imp)	5.55A
Open circuit voltage(Voc)	21.6V
Short circuit current(Isc)	5.99A
Module efficiency	14.50%
Power Tolerance	±3%
Operating Temperature	-40ºC~+85ºC
Product certification	CE/ROHS
Dimensions	1200*540*2.5mm
No. of Cells	36PCS(4*9)
Weight	1.5kg
Junction Box	IP65
Output Cables	2.5mm²*900mm
Connectors	MC4 compatible
Box Size	128*3*58cm
Packing Type	1PCS/CTN
weight	2.5kg/CTN
160W mono flexibility Solar panel
Module Type	ZY-F160W
Peak power(Pmax)	160W
MPP voltage(Vmp)	18V
MPP current(Imp)	8.9A
Open circuit voltage(Voc)	21.6V
Short circuit current(Isc)	9.6A
Module efficiency	15.90%
Power Tolerance	±3%
Operating Temperature	-40ºC~+85ºC
Product certification	CE/ROHS
Dimensions	1480*680*2.5mm
No. of Cells	36PCS(4*9)
Weight	2.7kg
Junction Box	IP65
Output Cables	2.5mm²*900mm
Connectors	MC4 compatible
Box Size	149*69*3cm
Packing Type	1PCS/CTN
weight	3.5kg/CTN

Mono Solar Panel
To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from
melted silicon and then sawed into thin plates.This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very
well in bright cool conditions.
Recommend Products
Factory pictures
Company Profile
Exhibition and Certifications
Packaging & Shipping
FAQ
Q1: How to choose the right panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used
to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using,
we offer 24 hours online service and will solve your problem within 1 hour.

---
