Product Description
Product Description

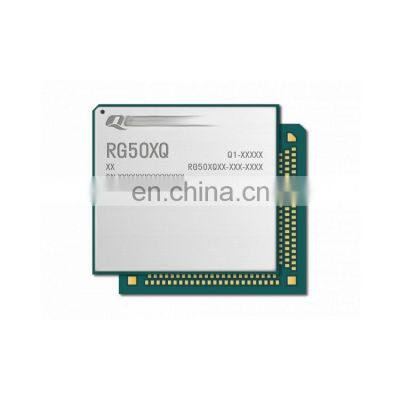

DescriptionOverview● The RG50xQ is a series of sub-6GHz LGA 5G IoT modules measuring 41.0mm × 44.0mm × 2.75mm which meets the 3GPP Release 15 specification and is optimized for industrial and commercial IoT applications. It supports both standalone (SA) and non-standalone (NSA) modes, as well as Option 3x, 3a and Option 2 network architecture, is backward-compatible with 4G and 3G networks including LTE Cat 20, and delivers maximum downlink rates of 2.5Gbps and maximum uplink rates of 900Mbps. The series consists of four variants to meet varied geographical requirements, which can be compared via the table above.● The RG50xQ supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS receiver greatly simplifies product design and makes positioning capabilities quicker and more accurate. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (e.g. USB drivers for Windows 7/8/8.1/10, Linux and Android) allow the RG50xQ to serve a wide range of IoT applications including business routers, home gateways, set top boxes, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs and digital signage.Key Features● Supports both NSA and SA modes● Supports Option 3x, 3a and Option 2 network architecture● Supports Qualcomm® IZat™ location technology Gen9C Lite● Supports MIMO● USB 3.1 / PCIe 3.0 high speed interface● Quectel Enhanced AT Commands● Multi-constellation GNSS receiver available● Feature refinements: DFOTA and VoLTE (optional)RG500Q-EA &RG502Q-EARG500Q-EU &RG501Q-EU & RG502Q-EURG500Q-CNRG500Q-GT & RG502Q-GTREGION / OPERATOREMEA/APACEMEA, APAC, Australia, BrazilChinaGlobalFREQUENCY BANDS①5G NR NSAn1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n7n41/n78/n79-5G NR SAn1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/ n78n1/n28/n41/n78/n79n78LTE-FDDB1/B3/B5/B7/B8/B18/B19/B20/B26/B28/ B32B1/B3/B5/B7/B8/B20/B28/B32B1/B3/B5/B8-LTE-TDDB34/B38/B39/B40/B41/B42/B43B38/B40/B41/B42/B43B34/B38/39/B40/B41B42/B43LAA----WCDMAB1/B3/B5/B6/B8/B19B1/B5/B8B1/B8-MIMODL: 4 × 4UL②: 2 × 2DL: 4 × 4UL②: 2 × 2DL: 4 × 4UL②: 2 × 2DL: 4 × 4UL②: 2 × 2GNSSGPS/GLONASS/BDS/Galileo/QZSS (Optional)GPS/GLONASS/BDS/Galileo/QZSS (Optional)GPS/GLONASS/BDS/Galileo/QZSS (Optional)-DATA TRANSMISSION5G SA Sub-6 GHzRG500Q-EA:2.1 Gbps (DL)/ 900 Mbps (UL)RG502Q-EA:4.2 Gbps (DL)/ 900 Mbps (UL)RG500Q-EU: 2.1 Gbps (DL)/ 900 Mbps (UL)RG501Q-EU: 2.1 Gbps (DL)/ 900 Mbps (UL)RG502Q-EU: 4.2 Gbps (DL)/ 900 Mbps (UL)2.1 Gbps (DL)/ 900 Mbps (UL)RG500Q-GT:2.1 Gbps (DL)/ 900 Mbps (UL)RG502Q-GT:4.2 Gbps (DL)/ 900 Mbps (UL)5G NSA Sub-6GHzRG500Q-EA:2.5 Gbps (DL)/ 650 Mbps (UL)RG502Q-EA:5.0 Gbps (DL)/ 650 Mbps (UL)RG500Q-EU: 2.5 Gbps (DL)/ 650 Mbps (UL)RG501Q-EU: 3.3 Gbps (DL)/ 650 Mbps (UL)RG502Q-EU: 5.0 Gbps (DL)/ 650 Mbps (UL)2.5 Gbps (DL)/ 550 Mbps (UL)-LTERG500Q-EA:1.0 Gbps (DL)/ 200 Mbps (UL)RG502Q-EA:2.0 Gbps (DL)/ 200 Mbps (UL)RG500Q-EU:1.0 Gbps (DL)/ 200 Mbps (UL)RG501Q-EU&RG502Q-EU:2.0 Gbps (DL)/ 200 Mbps (UL)800 Mbps (DL)/ 200 Mbps (UL)RG500Q-GT:700 Mbps (DL)/ 116 Mbps (UL)RG502Q-GT:1.2Gbps (DL)/ 116 Mbps (UL)UMTS42 Mbps (DL)/ 5.76 Mbps (UL)42 Mbps (DL)/ 5.76 Mbps (UL)42 Mbps (DL)/ 5.76 Mbps (UL)-CERTIFICATIONSCARRIERRG500Q-EA:South Korea: LGU+/KT/SKTAustralia: Telstra*China: China Telecom/China Mobile/ China UnicomRG502Q-EA: TBDTBDChina:China Telecom/China Mobile/China UnicomTBDREGULATORYRG500Q-EA:China: SRRC/ NAL/ CCCSouth Korea: KCJapan: JATE/TELECEurope: CEAustralia/New Zealand: RCMRG502Q-EA:Europe: CEAustralia/New Zealand: RCMRG500Q-EU:Europe: CEAustralia/New Zealand: RCMRG501Q-EU:Global: GCFEurope: CE Australia/New Zealand: RCMRG502Q-EU:Europe: CEAustralia/New Zealand: RCMChina: SRRC/NAL/CCCEurope: CEAustralia/New Zealand: RCMOTHERSRoHSRoHSRoHSRoHSRG500Q-EA &RG502Q-EARG500Q-EU &RG501Q-EU & RG502Q-EURG500Q-CNRG500Q-GT & RG502Q-GTWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
