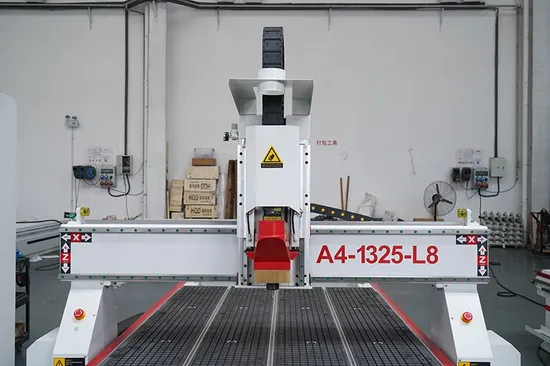

1325 Wood CNC Router Machine Price Atc CNC Router Machine for MDF Sheet and Door Furniture

Product Description

SIGN 1325 ATC woodworking cnc router for Wooden Door Furnitures Cabinets SIGN 1325 1530 2030 2040 Standard cnc router for wholesales Product Description
Application Industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door
screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on souvenirs.
Applicable materials:
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and
other nonmetal materials ect...
Prccessing effect:
It can manufacture the following effects: relief, shadow, enchasement and so on

Model	A4-1325-L8-E
X,Y Working Area:	1300x2500mm
Z feed Height	300mm
X,Y,Z repositioning Accuracy:	±0.01mm
Table Surface:	Vacuum table
Frame:	Bigger and thicker Steel tube structure
X, Y Z Structure:	25mm Rail Linear Bearings and Ball Screw
Max. Power Consumption:	(Without spindle) 3 Kw
Max. Rapid Travel Rate:	38000mm/min
Max. Working Speed:	25000mm/min
Spindle Power:	9 KW HQD air cooling spindle
Spindle Speed:	0-24000RPM
Drive Motors:	AC Servo motor
Working Voltage:	AC380V/50/60Hz,3PH
Command Language:	G code
Operating System:	Taiwan Syntec control system
X,Y Resolution	<0.01mm
Software Compatibility:	Type3/UcancameV9 software, (Option: Artcam software)
Running Environment Temperature:	0 degree - 45 degree
Relative Humidity:	30% - 75%
Guarantee	Two Year for Machine

Detailed Photos

Samples
Packaging & Shipping
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. Let it more strong to avoid damage during the transport and for long distance transportation.
Company Profile
FAQ
FAQ :
Q 1. I have no idea which machine can meet my need,what should I do?
A . Please tell the what's material you want to working on ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Then I will recommend the most suitable machine for you
Q 2. I do not know how to handling CNC Router,what should I do?
A . We will supply you a training video and English handbook to teach you how to

operate.Or we will welcome you to arrive China to field-based learning .
Q 3. If my machine has some problems in the warranty period,what should I do?
A . If the machine part broken within warrantry time,we will send new part to you for free.
Pls Kindly Talk with me for more machine details and prices and other machine models

---
