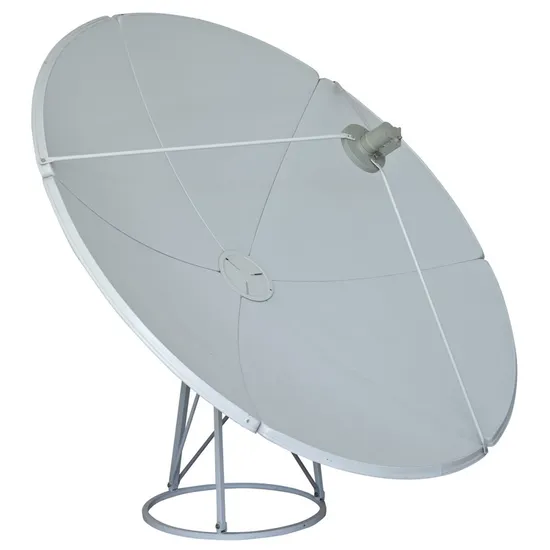

150cm C Band Satellite Dish Antenna

Product Description

150cm C Band Satellite Dish Antenna
Petal: 6
Diameter: 150CM
C band Gain: 4GHz 32.80dB
KU band Gain @ 12.45GHz 44.26dB
Focal length 570MM
Material Steel plate
Finishing Polyester Powder Coating
Support Ground Mount or Polar Mount
Color: White/gray

Elevation angle range	0-90
Azimuth	0 -360

Elevation angle range: 0-90
Azimuth 0 -360
Aperture efficiency: 75%
F/D ratio 0.38
Pole diameter acceptable: 60mm
Ambient temperature: -25 - +55
Ralative humidity: 0 - 100%
Thickness: 0.6mm/0.5mm
Wind speed
Operational: 25m/sec
Survival: 40m/sec
Not damage 60m/sec
Working environmental temperature -40--+60
Individual packing with foam: 420PCS/20 container
Bulk pack: /nude pack with accessories 10 set/carton: 960PCS/20 container
